Putzmeister M42-4

Cena bez PDV-a

Images24Videos1

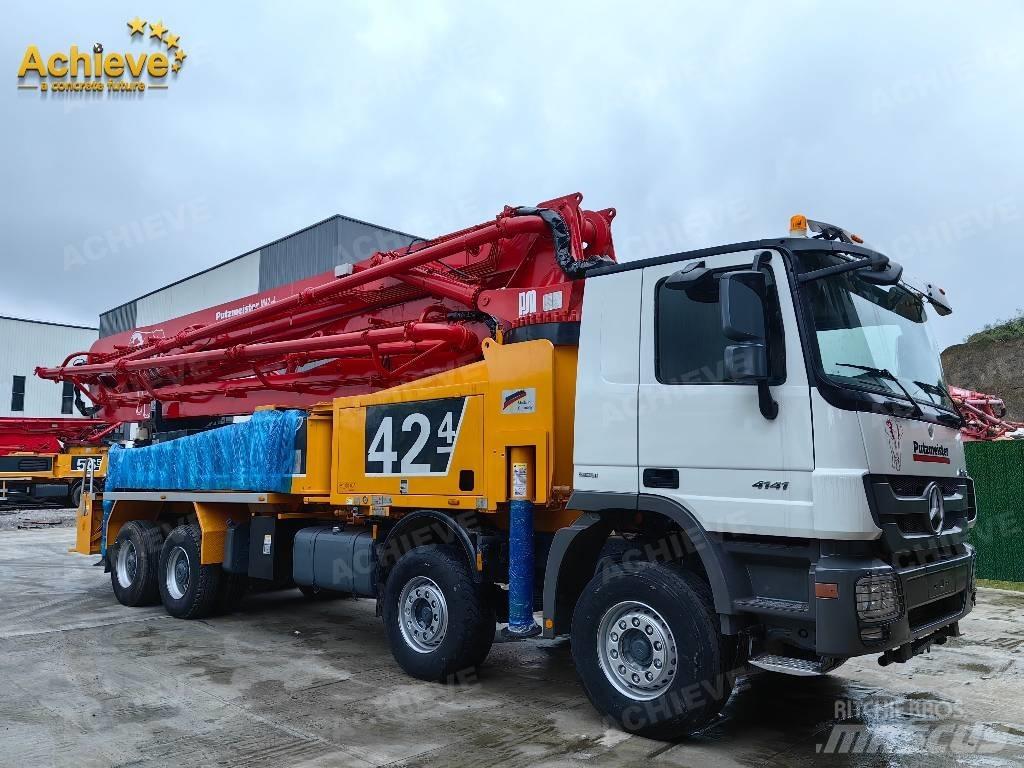

Putzmeister M42-4 Kamionske beton pumpe
Putzmeister M42-4 Kamionske beton pumpe
FavoriteOmiljeno
shareDio
Save searchSačuvaj pretragu
Štampaj

INFO

Grupa proizvoda
Kamionske beton pumpe
Brend/Model
Putzmeister M42-4
Godište proizvodnje
2014
Sati korišćenja
3000 h
Dodatne opcije
Restauriran,Remontovano
Zemalja
Kina
Opšta ocena
1
2
3
4
5
Mascus ID
C8CCEE59

CENA

Izaberi valutu:

DETALJI

Broj internog magacina
AICPT010
Broj boom sekcija
5
Poslednja inspekcija
2024-09-26
Bruto težina
26000 kg
trajanje
400 cm
Maksimalni horizontalni dohvat
3730 cm
Maksimalni vertikalni domet
4160 cm
Tip pokreta
statični
Tip pumpe
Dizel
Snaga pumpe
300 kW
Transportne dimenzije (DxŠxV)
11500 x 2500 x 4200 mm
Klasa emisije
Stage V
Engine manufacturer
Ergonic3. EU Version
Tip pumpe
Klipna
Proizvodjač šasije
Mercedes Benz
Brend guma
Mercedes Benz
Zemlja proizvodnje
Kina
Uslovi isporuke
FOB, CIF
Certifikati
EPA, CE, TÜV
Dodatna oprema
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 41.6 m Horizontal Reach gross 37.3 m Horizontal Reach net 34.5 m Reach Depth 31 m Unfolding Height 8.6 m Slewing Range 365 degree End Hose - Length 4 m Delivery Line (DN, Pressure) DN125/5.5 / 85 mm/bar Support width Standard (front-rear) 7.5 / 8.3 m Support width OSS (front-rear) 5.0 / 6.4 m Support width iSC (front/rear) 2.6-7.5 Length x Width x Height 11.35 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 170 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 27
Ostale informacije
The Putzmeister M42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. In Europe the M42-5 is equipped with iSC full flexible support and Ergonic 3 control. For countries outside of Europe it is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons. Key Features A gross weight of less than 32 t includes sufficient reserves for payload and operating materials Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure Efficient work through consistently clever ergonomic design Even better safety through closer consideration for current standards and guidelines Service-friendly as a result of its optimised accessibility and consistent bolted concept Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard deliPrikaži više

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Kina
