KWIK EQUIP Demontažne prikolice
KWIK EQUIP Demontažne prikolice
KWIK EQUIP Demontažne prikolice
FavoriteOmiljeno
shareDio
Save searchSačuvaj pretragu
Štampaj

INFO

Grupa proizvoda
Demontažne prikolice
Brend/Model
KWIK EQUIP
Godište proizvodnje
2024
Lokacija Mašine
Houston, Texas
Zemalja
Sjedinjene Američke Države
Mascus ID
0E0D09D4

DETALJI

Broj internog magacina
191924HDK
Ostale informacije

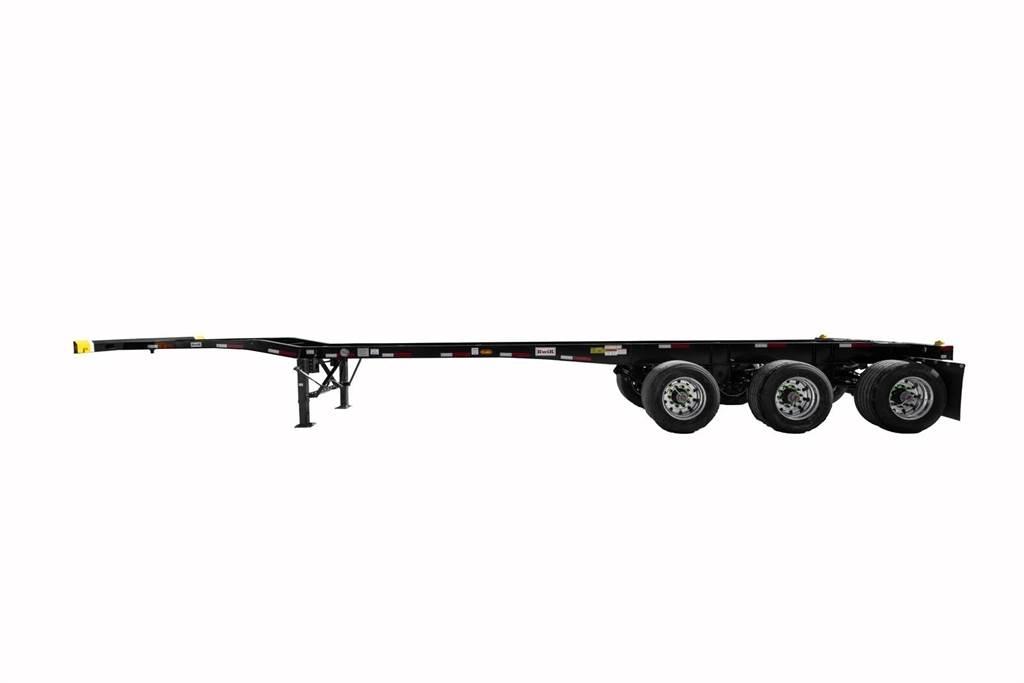

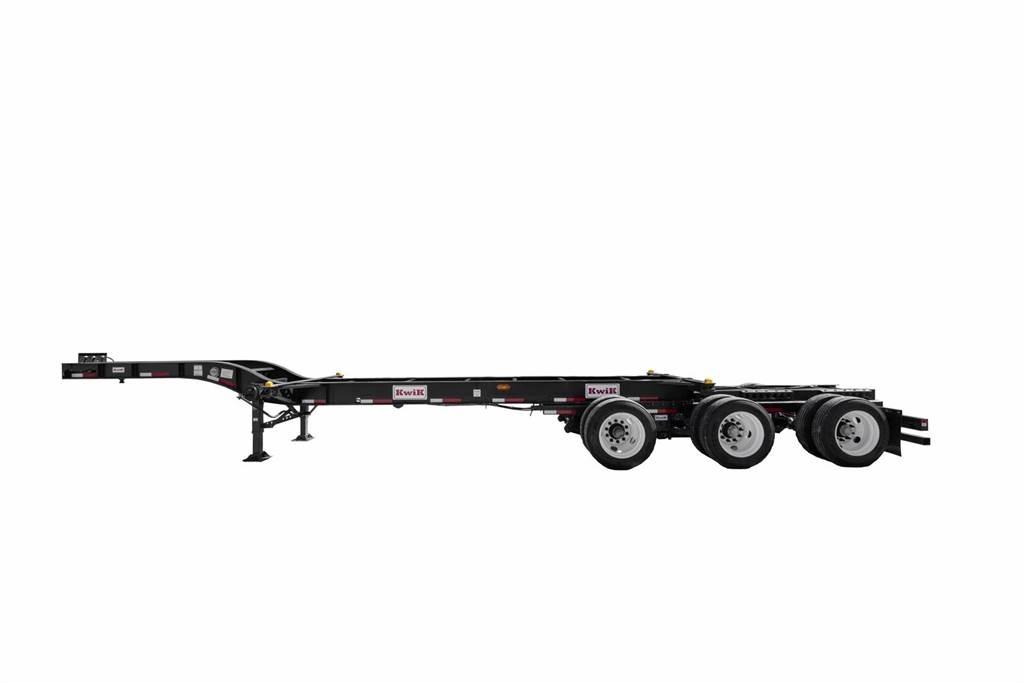

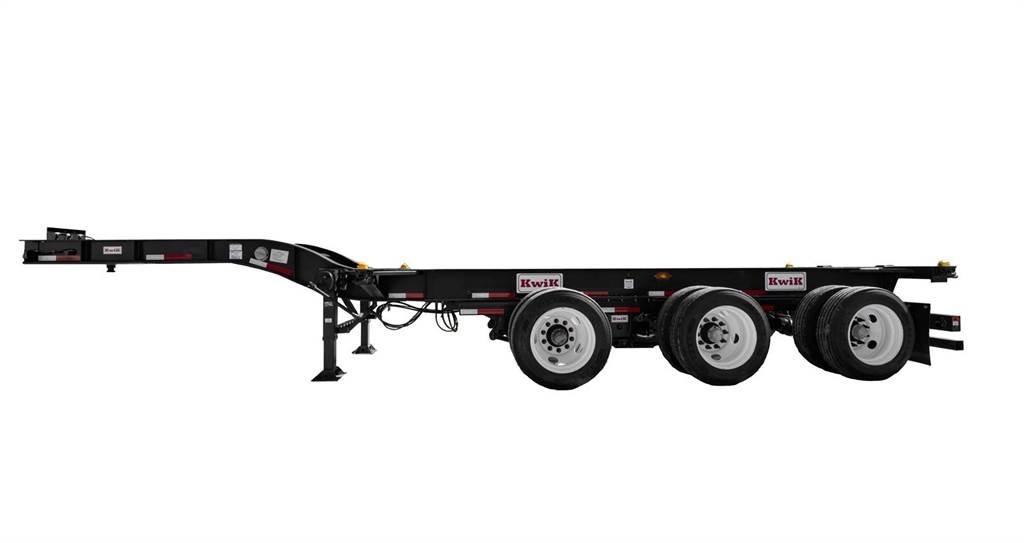

40ft long Gooseneck Triaxle Spring Suspension Slider Chassis extends from 33ft (closed) to 40ft PURPOSE: Designed to carry 20ft ISO TANK CONTAINERS weighing up to 60,000 lbs (conditions apply) CONTAINERS: (1) loaded 20ft ISO Tank Container STANDARD DIMENSIONS: LENGTH: 40’ WIDTH: 102” FIFTHWHEEL HEIGHT: 47” KINGPIN SETTING: 14” AXLE SPREAD: 120” DECK HEIGHT: 44” TARE WEIGHT: 8,500 LB (+/- 3%) (Chassis only) GVWR: 68,500 LB (Chassis, Container & Net Payload) – conditions apply FRAME RATING: 69,500 LB GCWR: 80,000 LB (Chassis, Container, Net Payload & Tractor) STANDARD SPECIFICATIONS / FEATURES: MAIN BEAMS: Fabricated main beams Structural and fabricated Slider Frame Assembly CROSSMEMBERS: Fabricated KING PIN: 5/16” plate with 2” diameter double spool king pin. SLIDER: Frame on Frame slide, (friction slide – grease applied for sliding purpose) TWISTLOCKS: Standard Retractable & Non-Retractable twistlocks LANDING GEAR: Standard 2-speed 19” Landing Gear, crank handle on driver side SUSPENSION: 60” spread spring suspension with single leaf springs AXLES: 71 ½” Track, 5” Round, 22,500 lbs with 60” centers HUBS & DRUMS: Standard steel hubs & cast drums – 10-hole Hub-Piloted BRAKES: 16 ½” X 7” quick-change brakes with non-asbestos lining WHEELS: (12) 8.25 X 22.5 10-hole Radial Steel disc Wheels TIRES: (12) 255/70R22.5 - 16 Ply Radial Tires BRAKE SYSTEM: Standard Valve System for service and emergency brakes. 4S/2M WABCO/Meritor ABS system w/RSS (Roll stability system) ELECTRICAL SYSTEM: 12v w/modular wiring and plug type connectors. 7-way pin electrical plug for ABS System. Sealed wiring harnesses. LED Lights with flange mounts. PAINT: Zinc rich primer with Topcoat Urethane finish COLOR: BLACK MISCELLANEOUS: Mudflaps, logos, decals & Unit Numbers KWIK Conspicuity Striping Registration Holder Prikaži više

Darda Management Group LLC

825 S Loop West Ste A-1 77054 Houston Texas Sjedinjene Američke Države
