Rinieri EB 1532 4

Cena bez PDV-a

Images5
Rinieri EB 1532 4 Oprema za prednji utovarivač
Rinieri EB 1532 4 Oprema za prednji utovarivač
Rinieri EB 1532 4 Oprema za prednji utovarivač
FavoriteOmiljeno
shareDio
Save searchSačuvaj pretragu
Štampaj

INFO

Grupa proizvoda
Oprema za prednji utovarivač
Brend/Model
Rinieri EB 1532 4
Godište proizvodnje
2015
Dodatne opcije
Eks izložbeni model
Lokacija Mašine
Degeberga
Zemalja
Švedska
Opšta ocena
1
2
3
4
5
Mascus ID
ED5802F0

CENA

Izaberi valutu:

DETALJI

Broj internog magacina
6EB15324
Tip dodatne opreme
Vile

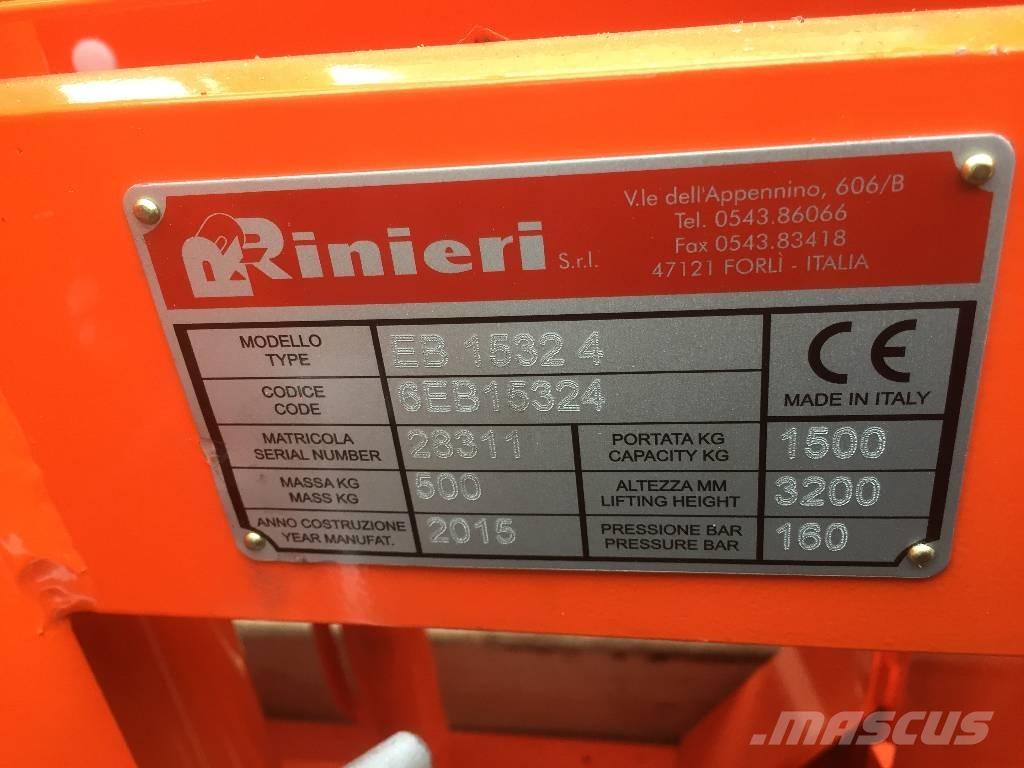

Proizvodnja/Serijski broj
28311
Transportna težina
500 kg
Informacije o stanju/Garancija
Ingen
Zemlja proizvodnje
Italija
Ostale informacije

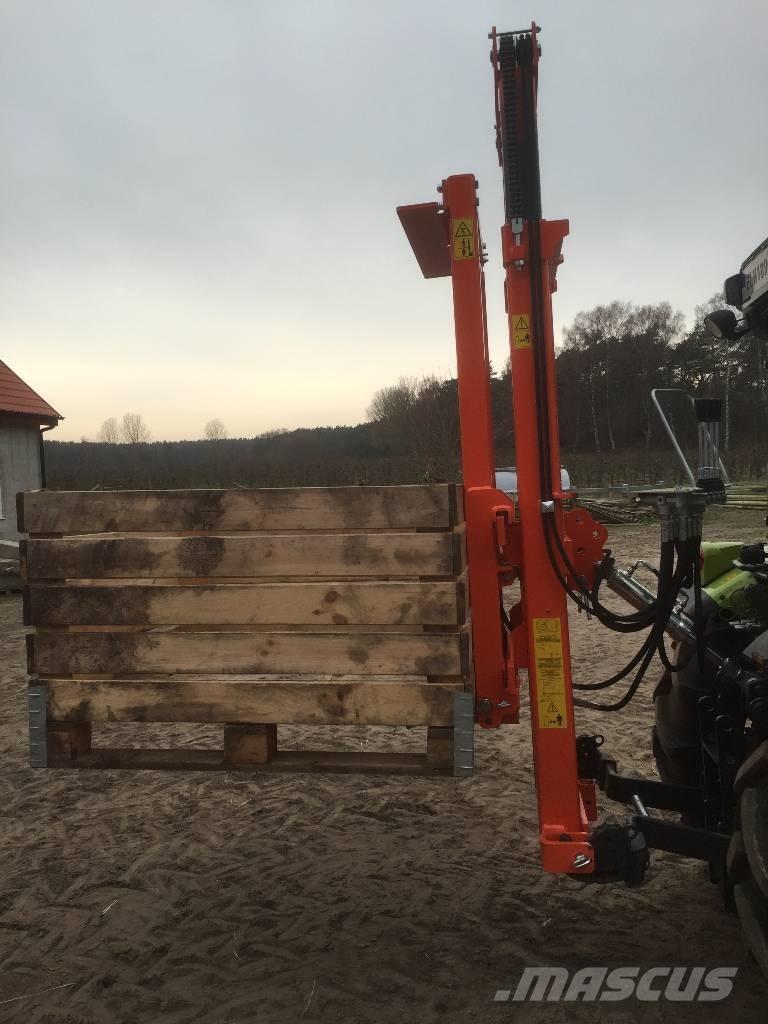

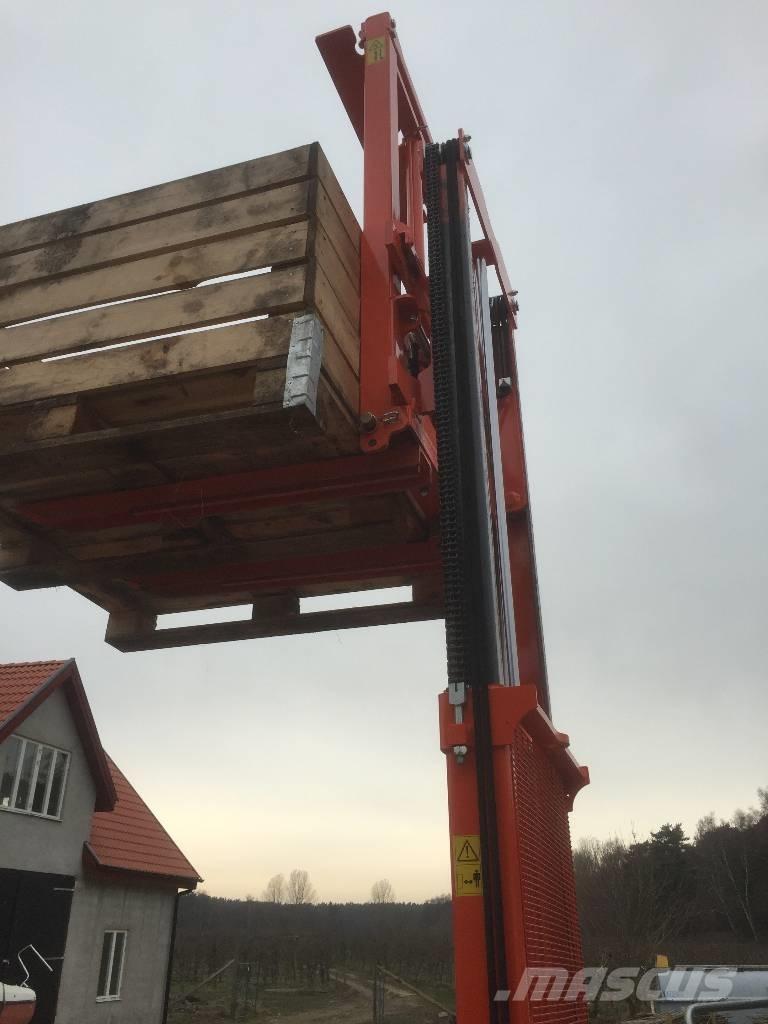

Elevators with hydraulic distributor are specially designed for tractors with three-point linkage through pivot and a shreaded arm. The elevator can function by means of distributor with levers. The needed thrust is setted on by the hydraulic system of the tractor. The elevation function is enabled by action on the hydraulic cylinder togheter with the vertical rods that make the truck slide through the chains. The elevator is equipped with reclining loading forks and security chain for the operator. On demand the folding bins locking is available, the cylinder for folding bins locking the cylinder for the tilting which replaces the threaded arm, the cylinder for the shifting. Specification: Capacity load Max (kg): 1500 Max Elevation (mm) : 3200 Max With (mm): 700 Total With (mm): 840 Side shifting (mm): 100-100 Coupling Height from the ground (mm): 500 Gripper Min. H / Max. H (mm) : 1400 / 2600 Overall dimensions of the mast installed on the tractor (mm): 2410 Hydraulic movements: Lifting + Tilting + Side shift + Bins lockingPrikaži više

Callenbring & CO AB

Julebodavägen 13 29795 Degeberga Skåne län Švedska
