CAT 259 D

Cena bez PDV-a

Compnay LOGO
Images9

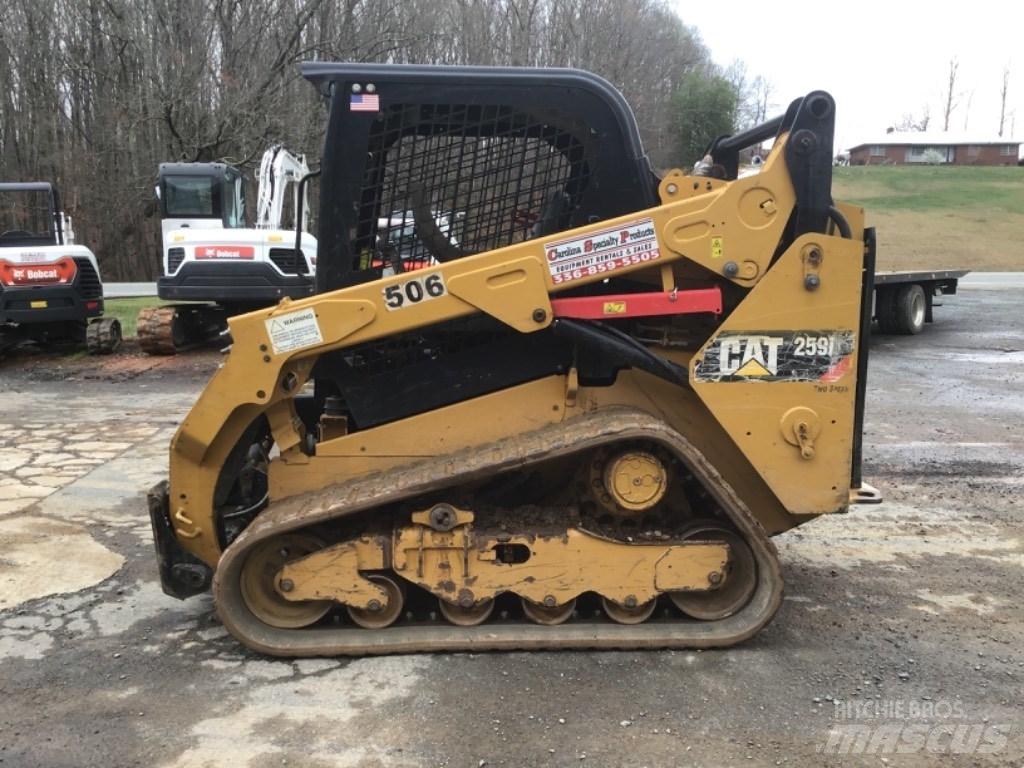

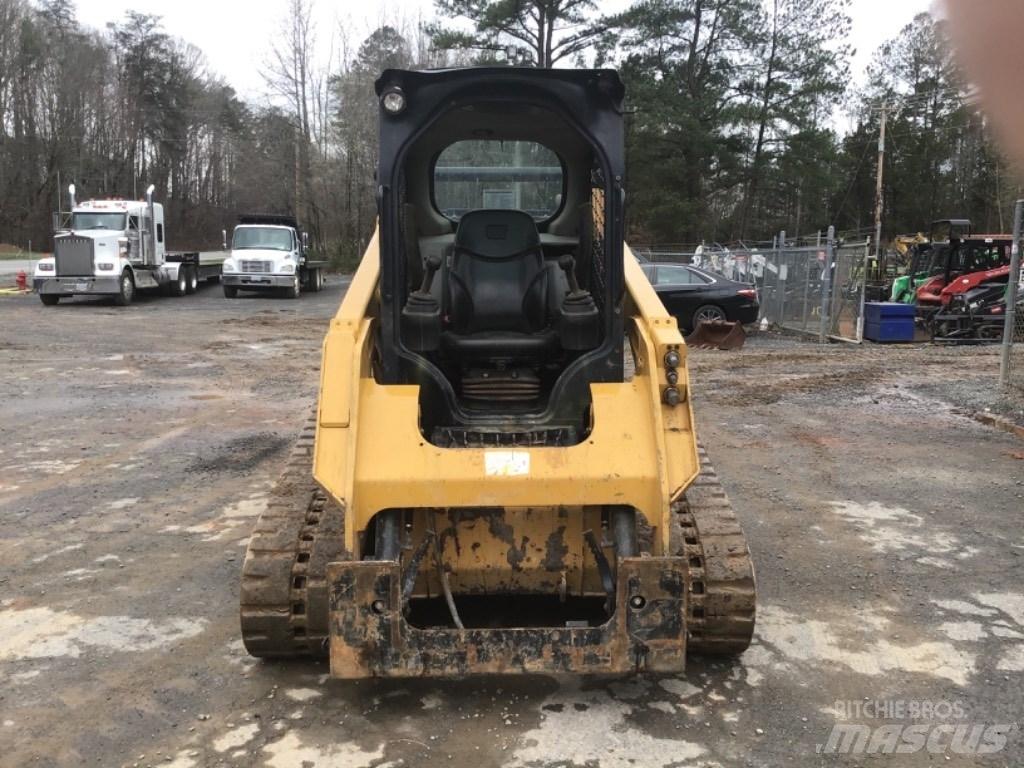

CAT 259 D Skid steer mini utovarivači
CAT 259 D Skid steer mini utovarivači
CAT 259 D Skid steer mini utovarivači
FavoriteOmiljeno
shareDio
Save searchSačuvaj pretragu
Štampaj

INFO

Grupa proizvoda
Skid steer mini utovarivači
Brend/Model
CAT 259 D
Godište proizvodnje
2018
Sati korišćenja
2784 h
Lokacija Mašine
Denton, North Carolina
Zemalja
Sjedinjene Američke Države
Opšta ocena
1
2
3
4
5
Mascus ID
9F1B54AB

CENA

Izaberi valutu:

DETALJI

Broj internog magacina
16
Proizvodnja/Serijski broj
CAT0259DTFTL20047
Bruto težina
4013 kg
Maksimalni kapacitet dizanja
2631 kg
Tip kabine
Otvorena kabina
Motor
CAT 63.3B
Snaga motora
53.8 kW (73.2 KS)
Engine manufacturer
DIT
Najveća brzina
13.8 km/h
Originalna boja
Yellow
Tip nosaća
Gusenični -
Informacije o stanju/Garancija
In good working condition
Ostale informacije
C Height To Top Of Cab 6.93ft in E Ground Clearance 8.9in G Clearance At Max Lift And Dump 7.5ft in H Reach At Max Lift And Dump 2ft in Clearance At Maximum Lift And Dump 89.9in Departure Angle 35 degrees Dump Angle 52degrees Height - Top Of Cab 6.93ft in Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). Bucket Pin Height - Carry Position 7.8in Bucket Pin Height - Maximum Lift 10.09ft in Bucket Pin Reach - Maximum Lift 9.4in Turning Radius From Center - Machine Rear 61.5in Vehicle Width (320 Mm/12.6 In Tracks) 66in Vehicle Width (400 Mm/15.7 In Tracks) 69in Length - Track On Ground 59in Length - With Bucket On Ground 137.31in Length - Without Bucket 108.9in Length With Bucket 11.44ft in Length With Out Bucket 9.08ft in Maximum Dump Angle 52 degrees Maximum Overall Height 154.1in Maximum Reach - With Arms Parallel To Ground 51.4in Overall Height 12.85ft in Overall Length - Track 78.7in Overall Track Length 6.56ft in Rack Back Angle - Maximum Height 87 degrees Reach - Maximum Lift/Dump 23.9in Turning Radius From Center - Bucket 86in Turning Radius From Center - Coupler 54.8in Undercarriage D Length Of Track On Ground 11.44ft in Ground Pressure 5.97psi Ground Contact Area 1488.01in2 Specifications Engine Engine Make DIT Engine Model Cat C3.3B Gross Power 74.3hp Net Power 73.2hp Peak Torque 195.5lb ft Torque Measured 1500rpm Displacement 203cu in Bore 3.7in Stroke 4.7in Net Power - Iso 9249 73.9hp Gross Power - Sae J1995 74.3hp Engine Model Cat C3.3B DIT (turbo) Net Power - Sae 1349 73.2hp Peak Torque - 1,500 Rpm - Sae J1995 195lb ft Operational Operating Weight 8847.2lb Cooling System Fluid Capacity 3.7gal Fuel Capacity 27.8gal Engine Oil Capacity 3gal Hydraulic System Fluid Capacity 13.3gal Operating Voltage 12V Alternator Supplied Amperage 80amps Max Speed - Low Range 6mph Max Speed - High Range 8.6mph Power Train Travel Speed - Forward Or Reverse - One Speed 5.9mph Travel Speed - Forward Or Reverse - Two Speed 8.5mph Loader Breakout Force 5035.4lb Tipping Load 5800.4lb Operating Load 2899.1lb Weights Operating Weight 8945lbPrikaži više

Carolina Specialty Products

1816 Badin Road 28001 Albenarle North Carolina Sjedinjene Američke Države
