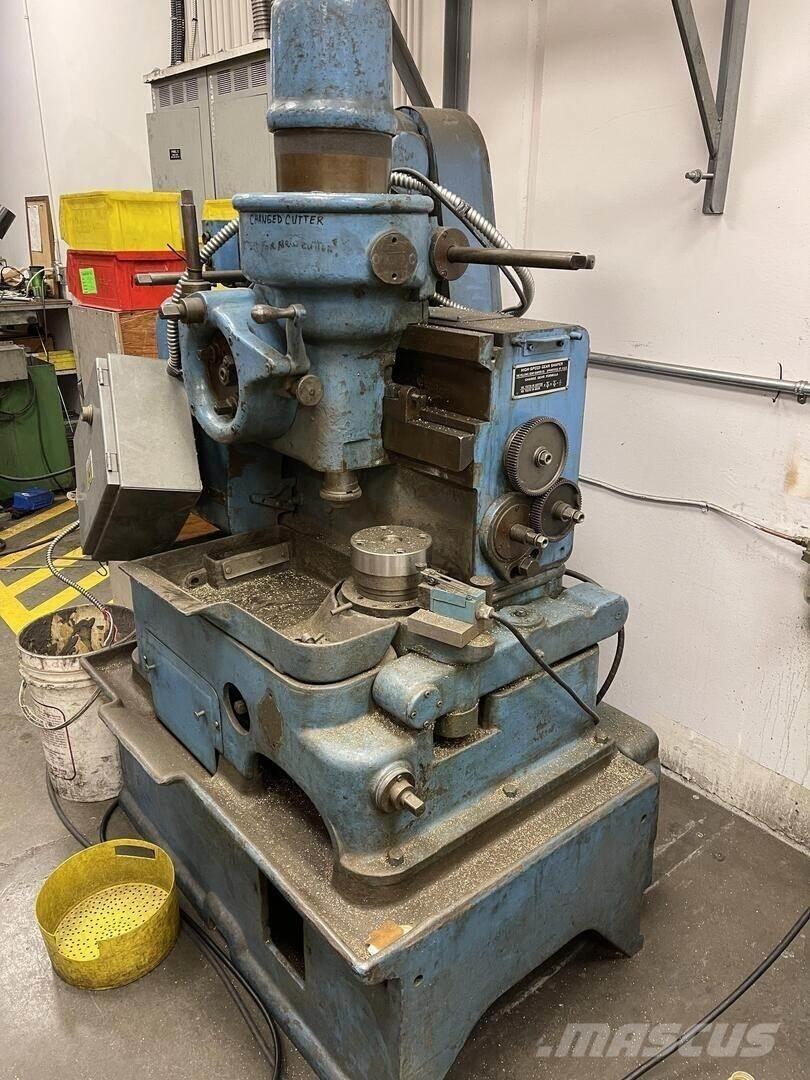

FELLOWS Type 7

7 Type High-Speed Gear Shaper Title: 7 Type High-Speed Gear Shaper SKU: 27480 Model: Type 7 Condition: Used ElectricalVoltage:220volts Phase:3-phase GeneralSpeed:33 rpm (rapid) / 10 rpm (feed) Made In: UNITED STATES Dimensions: 78.00 (H) x 50.00 (W) x 58.00 (L) inches Maximum Pitch Diameter: 7" Max. Workpiece Diameter: 39.37" Max. Diametral Pitch/Module: 1.41 DP/18 M Max. Swiveling Angle: +/- 45o Center Distance from Wheel Spindle to Center of Worktable: - Max. 27.56" - Min. 3.93" Max. Radial Travel: 23.62" Height Worktable to Center of Wheel Spindle: - Max. 33.46" - Min. 5.91"
