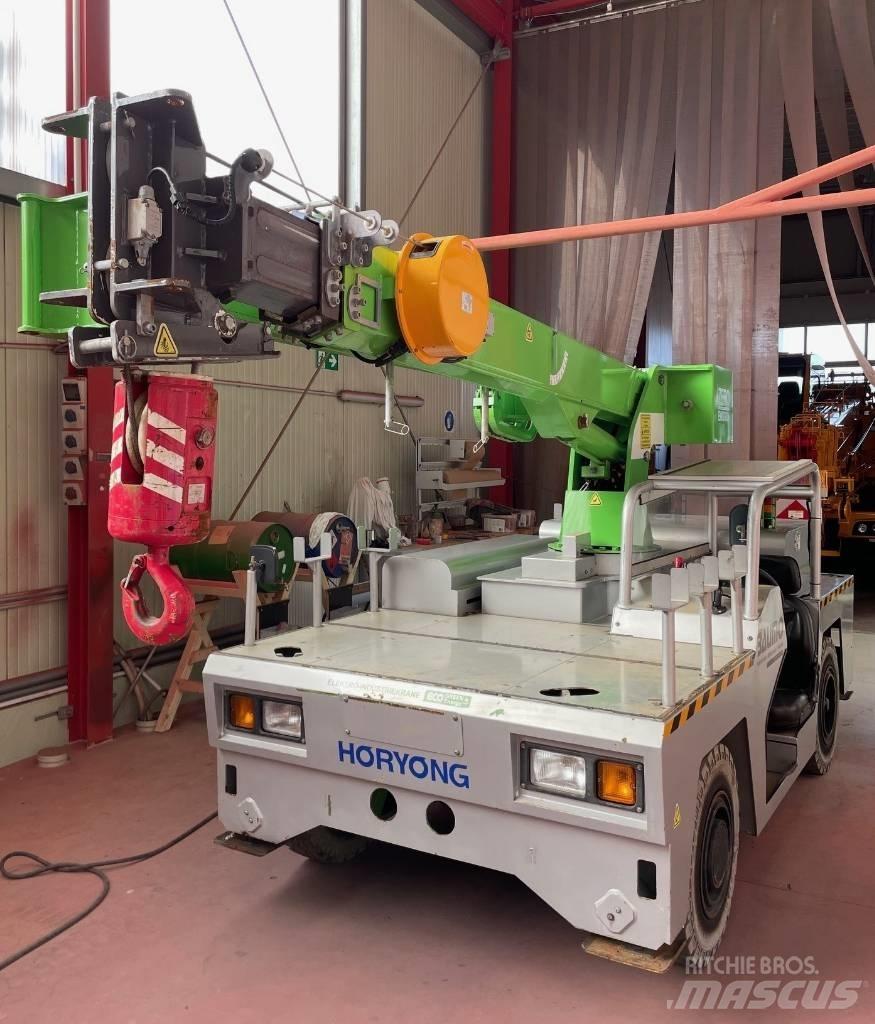

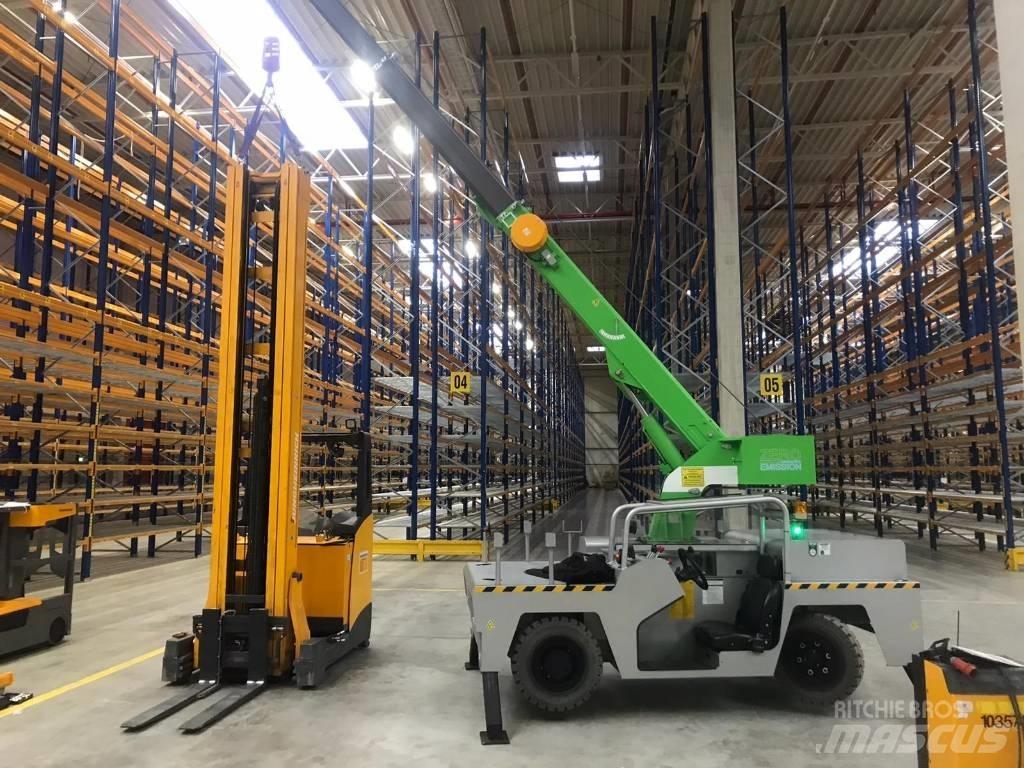

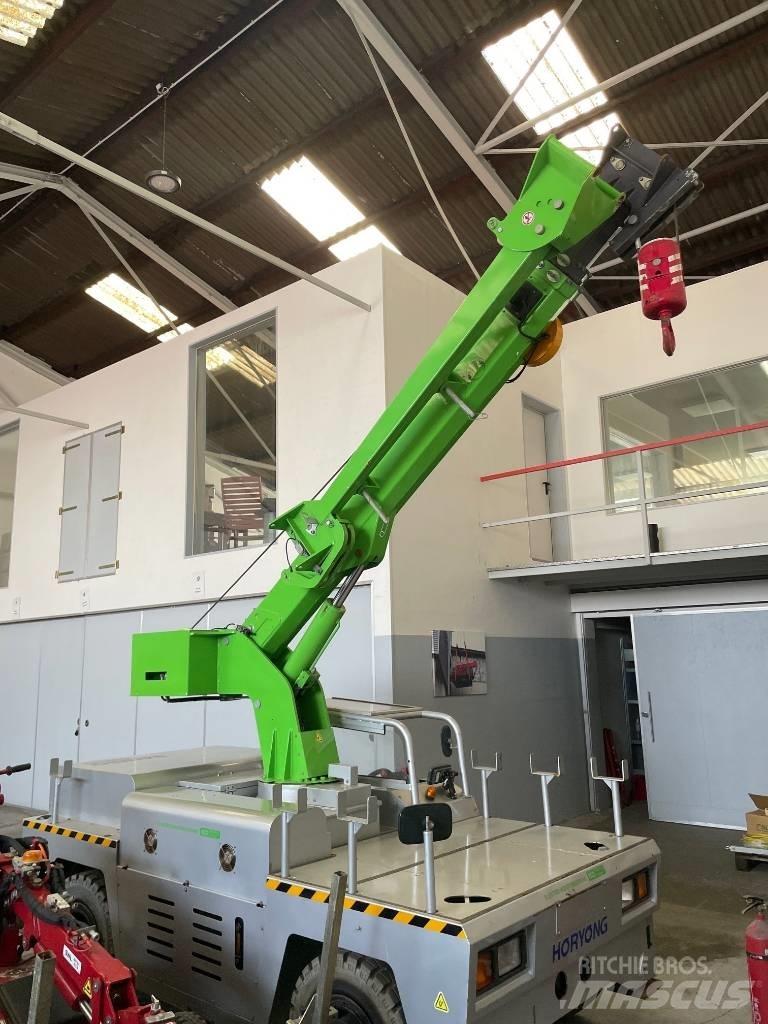

Horyong BMK-403 ECO

Cena bez PDV-a

Pitaj za cenu

Compnay LOGO
Images6
Horyong BMK-403 ECO Ostali kranovi
Horyong BMK-403 ECO Ostali kranovi
Horyong BMK-403 ECO Ostali kranovi
FavoriteOmiljeno
shareDio
Save searchSačuvaj pretragu
Štampaj

INFO

Grupa proizvoda
Ostali kranovi
Brend/Model
Horyong BMK-403 ECO
Godište proizvodnje
2018
Sati korišćenja
287 h
Lokacija Mašine
Duisburg, Nordrhein-Westfalen
Zemalja
Nemačka
Opšta ocena
1
2
3
4
5
Mascus ID
A65059D6

DETALJI

Broj prethodnih vlasnika
1
Bruto težina
4019 kg
Maksimalni kapacitet dizanja
4200 kg
Maksimalni kapacitet dizanja na kraju konzole
3000 kg
trajanje
680 cm
Konzolna dizalica
220 cm
Dužina konzole dizalice
680 cm
Maksimalna visina podizanja
1020 cm
Visina kuke dizalice - horizontalno
840 cm
Visina kuke dizalice - prema vazduhu
221 cm
Gornji motor
see chassis
Gornji sati
200 h
Originalna boja
Silber-Grün
Nosač motora
Electric
Transportne dimenzije (DxŠxV)
435000 x 157000 x 205000 mm
Tip nosaća
Točkast
Brend guma
NM-Bereifung
Profili prednjih guma
90
Profil zadnjih guma
90
Zemlja proizvodnje
Južna Koreja
Uslovi isporuke
FCA, CPT, EXW
Certifikati
CE, TÜV
Dodatna oprema
Hakenflasche 1-rollig
Dodatna oprema
Kuka za balvane
Dokumenta
Traglasttabellen-Horyong-BMK-403-ECO-Hauptausleger-abgestutzt.pdf
Ostale informacije
Battery industrial yard crane HORYONG BMK-403 ECO, used unit battery drive, CE 2018, approx. 287 working hours Pick+carry and Carry deck TECHNICAL DETAILS: max. lifting capacity 4,2 t x 0,9 m max. load pick + carry 2,9 t max. load on carry deck 2,5 t max. working range 6,7 m (8,2 m with fly jib) max. hook height: 8,41 m (10,2 m with fly jib) DIMENSIONS & WEIGHT length 4.350 mm width 1.570 mm, height 2.050 mm total weight of crane: 4.019 kg outrigger base: 2.330 mm x 3.330 mm CRANE EQUIPMENT: telescopic main boom 3,07 bis 6,8 m, fully hydraulic, 3 sections fly jib with sheave head 2,2 m, max. lifting capacity 1,2 t, angel 0°, 25°, 50° one winch 360° slewing range unlimited Electronical Safe Load Indicator System Rayco Wylie i4500 working range limiter optical and voice warning system working light, emergency stop, round-about light hook block 1-sheave, max. 4,0 t lifting capacity drive 4 x 2 x 2 Carry-Deck for goods, size 1,55 m², max. load 2,9 t 3 pieces pipe holders / transport holders 4-point hydraulic outriggers, front and rear electric engine with batteries, 2x 10 kW, 72V / 300 Ah, rechargable batteries, integrated battery charger max. speed of crane is 6 km/h 4x non marking tires open crane driver cabin with lattice protection roof, operation panel The electric yard crane crane is in good working condition and can be ideally used inside hall areas where exhausts are vorbidden, The unit is immediately available ex our yard and can also be rented for jobsites in Germany.Prikaži više
