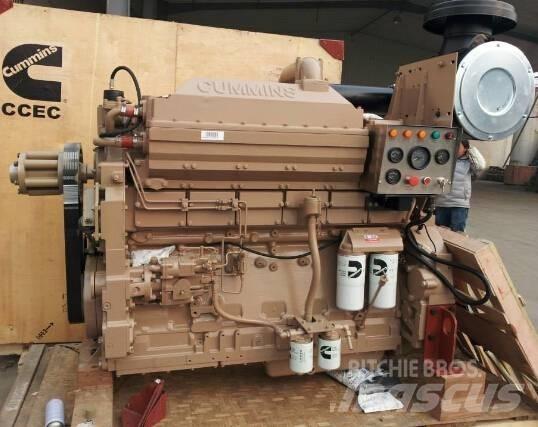

Cummins KTA19-M3

Cummins KTA19-M3-600 Marine Propulsion Engine General Information of Cummins KTA19-M3-600 Marine Propulsion Diesel Engine Engine Model KTA19-M3-600 Engine Type 6 Cylinders in Line Displacement 19 L Bore*Stroke(mm) 159 * 159 CPL Number 4150 Net Weight (Engine only) 2073 Kg Overall Diemension(L*W*H) 2151mm*966mm*1704mm Technical Specification of Cummins KTA19-M3-600 Marine Propulsion Diesel Engine Marine Certification CCS/IMO Aspiration Turbocharged & Intercooled Fuel System PT Pump Electrical System(Starter Motor/Alternator) 12V/24V Rated HP Production Tolerance ±2% Fuel Rail pressure 820 Performance Data of Cummins KTA19-M3-600 Marine Propulsion Diesel Engine Rated Power/Speed 447 kW/600HP @ 1800rpm Standby Power/Speed 490 kW/600HP @ 1800rpm Fuel Consumption @ Rated Power 219 g/Kw.h Fuel Consumption @ Standby Power 215g/Kw.h Idel Speed 675~775rpm
