Unic B-506-5.2

Cena bez PDV-a

Pitaj za cenu

Compnay LOGO
Images2
Unic B-506-5.2 Polovni mini kranovi
Unic B-506-5.2 Polovni mini kranovi
FavoriteOmiljeno
shareDio
Save searchSačuvaj pretragu
Štampaj

INFO

Grupa proizvoda
Polovni mini kranovi
Brend/Model
Unic B-506-5.2
Godište proizvodnje
2016
Sati korišćenja
767 h
Lokacija Mašine
Duisburg, Nordrhein-Westfalen
Zemalja
Nemačka
Opšta ocena
1
2
3
4
5
Mascus ID
470353FC

DETALJI

Broj prethodnih vlasnika
1
Bruto težina
5150 kg
Maksimalni kapacitet dizanja
5000 kg
trajanje
1570 cm
Maksimalni kapacitet dizanja na kraju konzole
900 kg
Dužina konzole dizalice
1570 cm
Maksimalna visina podizanja
1900 cm
Visina kuke dizalice - horizontalno
1600 cm
Visina kuke dizalice - prema vazduhu
300 cm
Transportne dimenzije (DxŠxV)
4870 x 1400 x 2035 mm
Brend guma
NM-Antriebsketten
Zemlja proizvodnje
Japan
Uslovi isporuke
FCA, CFR, EXW
Certifikati
CE, TÜV
Dodatna oprema
Kuka za balvane
3-rollig, max. 5,0 t 1-rollig, max. 1,7 t Einseilhaken, max 0,9 t
Ostale informacije

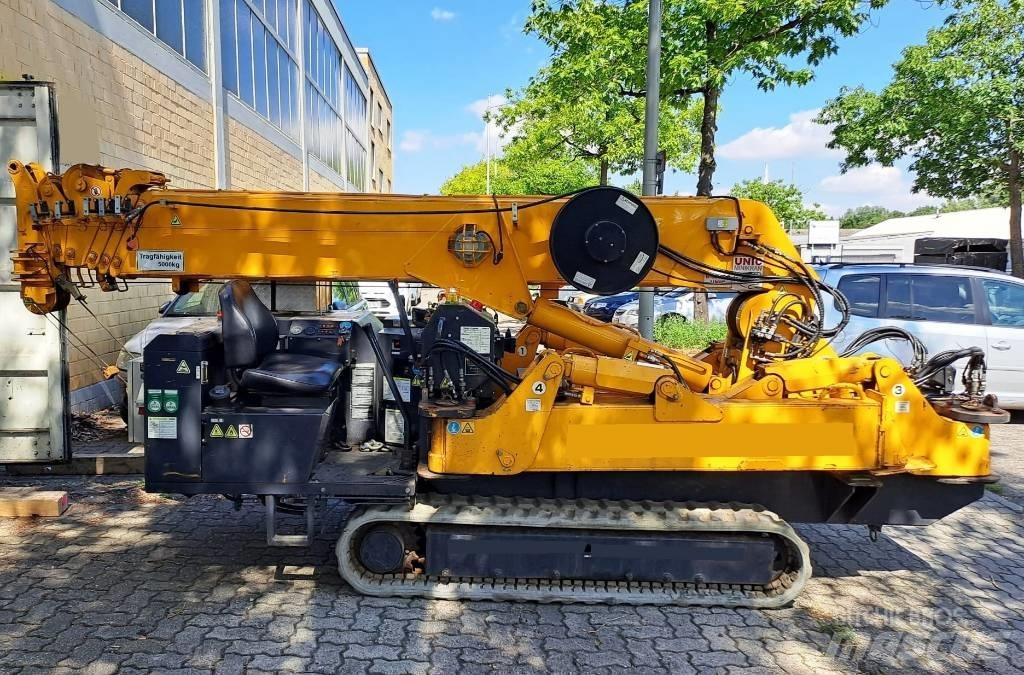

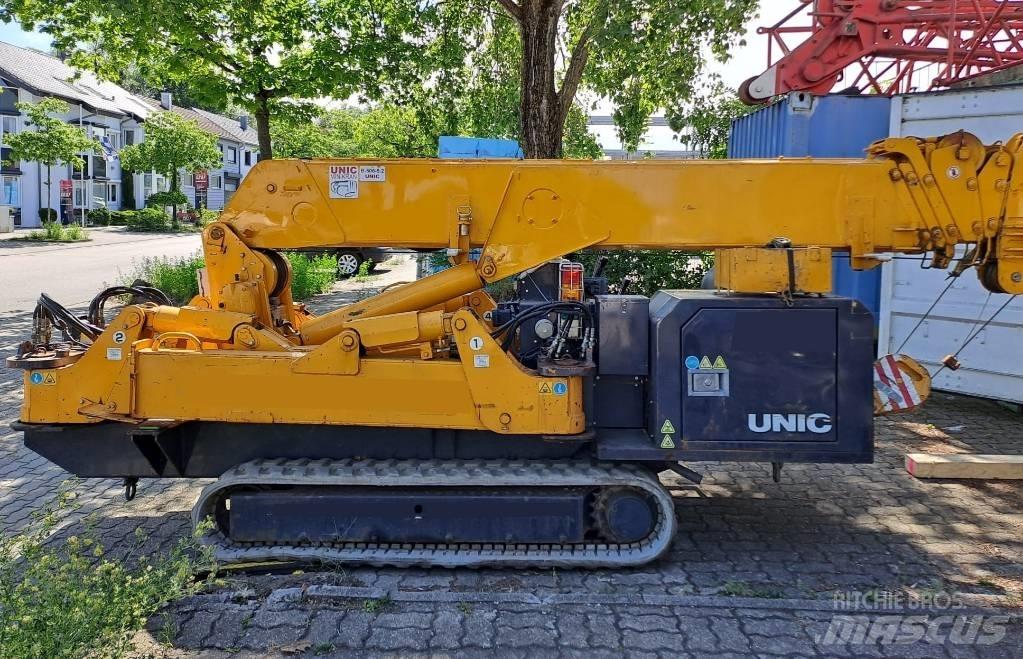

UNIC mini crawler crane, model B-506-5.2, year 2016, (used) only 767 h working hours incl. German DEKRA approval max. loading capacity 5,0 t TECHNICAL DETAILS: Max. Loading 5.0 t x 2.0 m Max. Hook height 19.0 m Max. Working area 16.5 m Dimensions: length 4870 mm (L) x 1400 mm (W) x 2035 mm (H) Weight approx. 5.150 kg STANDARD EQUIPMENT: 3.93 – 15.71 m telescopic main boom fully hydraulic Boom head with 3-sheaves 3,0 m folding jib with sheave head and searcher hook, max. 850 kg, hydr. adjustable 0-20° 1,0 m jib, max. 1,7 t, hydr. adjustable 0-20° 1x hoist winch German rope, low-spin, fine braided 360 ° rotation range (continuous), Diesel engine 18 kW (24,5 HP) Electric drive 380 V (AC 50/60 Hz, power 7,5 kW) with cable 50,0 m Radio remote control Safe load indicator Rayco Wylie Systems i4500 Variable footprint, computer controlled, variable positioning of each outrigger length (mininum, half, maximum), automatic detection of the outrigger position and calculation of the max. load of each outrigger Overwinding alarm, computer controlled intelligent voice warning system working lights, driver´s seat, Hydrostatic drive, step-less forward and reverse Speed 0 – 3,0 km/h, Track ground length 1.800 mm, Track ground width 300 mm Track ground pressure 0,46 kg/cm2 Hook block 3-sheaves, max. loading capacity 5,0 t Hook block 1-sheave, max. loading capacity 1,7 t Ball, max. loading capacity 900 kg Superstructure yellow, Chassis Black-grey Ideal for limited work areas or confined access to the work area and an intelligent solution and alternative to the conventional mobile crane (large crane) Various mini crane models with lifting capacities of 0.99 - 10.0 t lifting heights up to 31.0 m Used mini crane models on demand until 8.0 t loading capacity.Prikaži više

Mini & Mobile Cranes Körner GmbH

Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Nemačka
