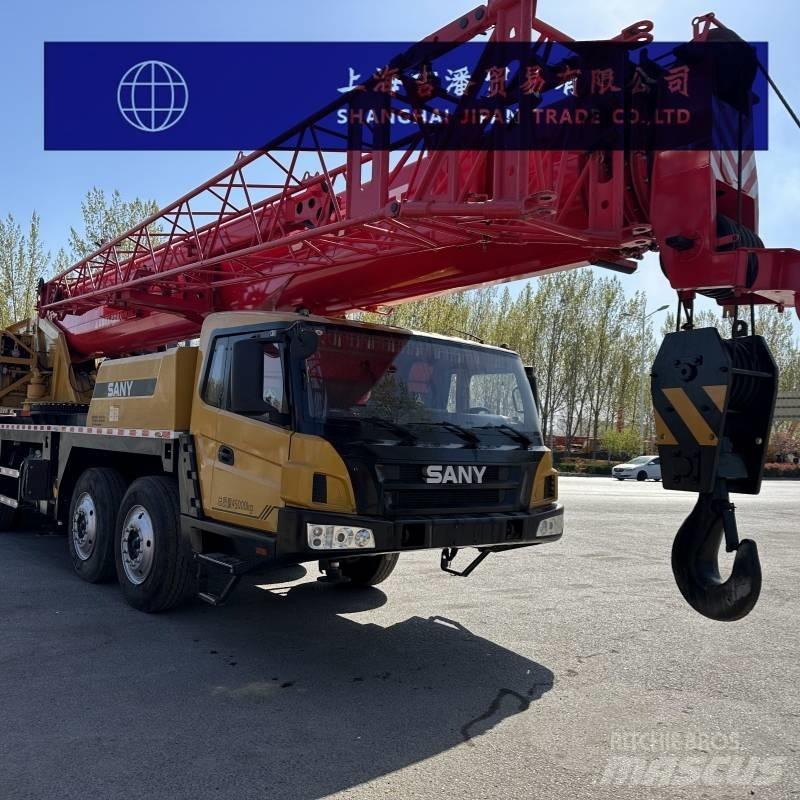

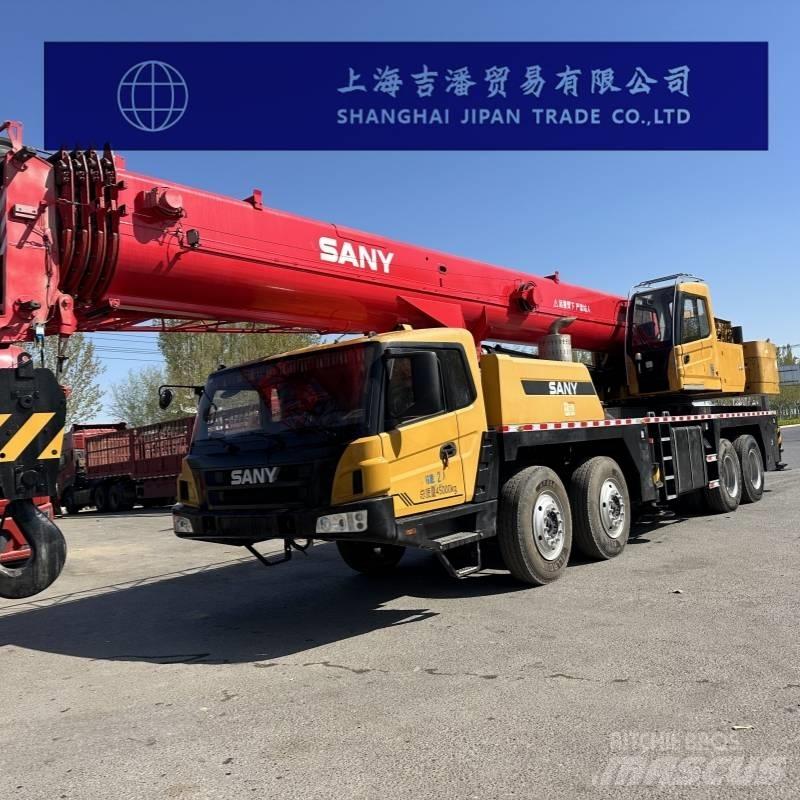

Sany STC 700

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Performance parameters Maximum lifting height: 76.5 meters Maximum lifting moment: 3146kN·m Maximum lifting capacity: 70 tons The maximum single-rope speed of the main hoist is 130m/min Full extension/retraction time of the boom: 125/140s Full boom lift/lower time: 60/90 seconds Maximum rotational speed: 1.7r/min Weight parameter The total weight of the whole machine is 47,300 kg Maximum counterweight: 15 tons Size parameter The total length of the entire machine is 14,970mm The total width of the whole machine is 2800mm The total height of the whole machine is 3880mm Outrigger span (horizontal x vertical) : 8(5.27)×6.48m Dynamic parameters Engine model: Weichai Maximum power of the engine: 276/1900kW/rpm The maximum output torque of the engine: 1785/1000-1400N·m/rpm Driving parameters Maximum driving speed: 90km/h Minimum turning radius: 12 meters Maximum slope: 0.45 Approach Angle: ≥17° Departure Angle: ≥13°
