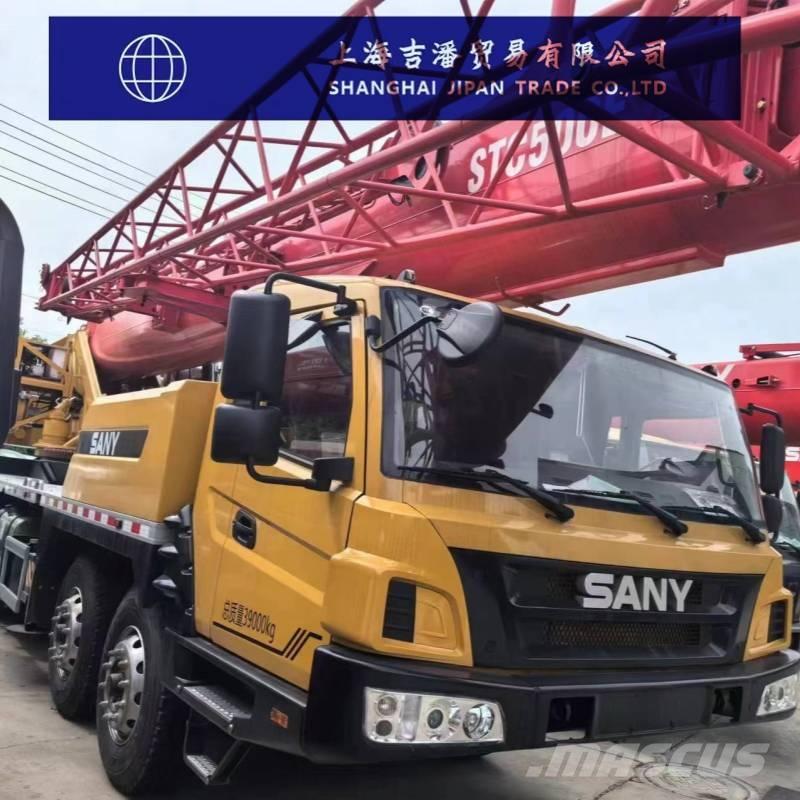

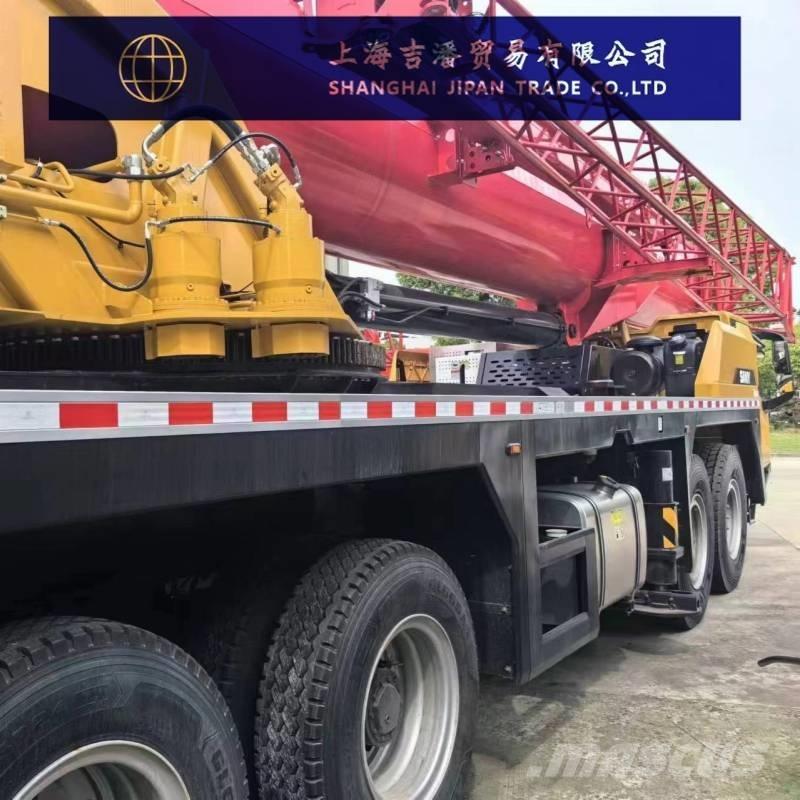

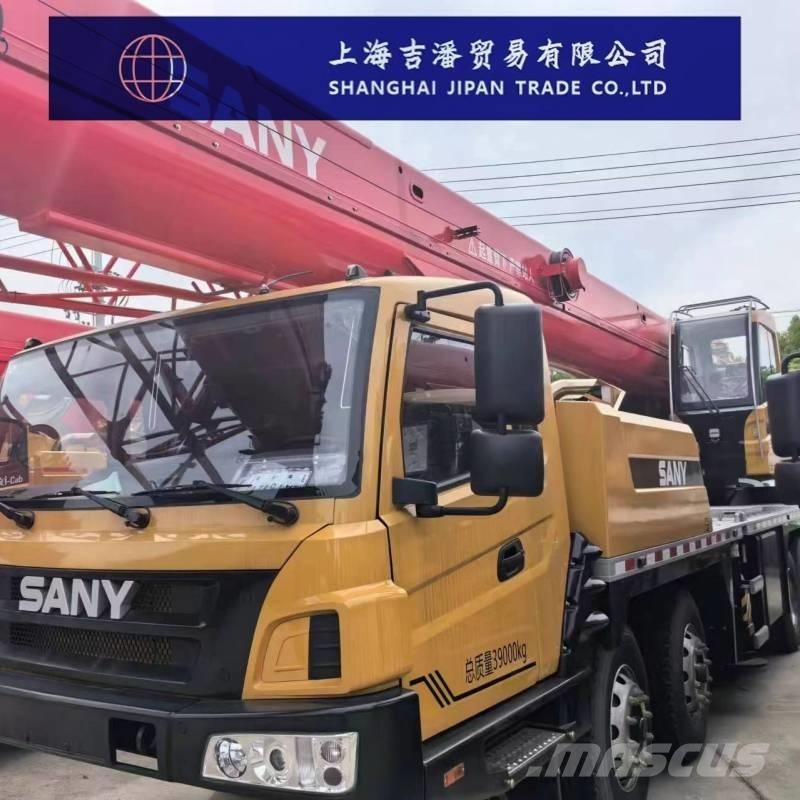

Sany STC 500 E

Fly Jib Hook Counter Weight We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.

Lifting capacity parameters Maximum rated lifting capacity:50 tons Maximum rated lifting moment: 1644kN·m-2107kN·m Maximum lifting height - fully extended boom:45.5m-62m Maximum lifting height - basic boom + auxiliary boom:61.5m-62m Operation speed parameter Maximum single-rope speed of the main hoist: 120m min-145m/ min Full extension time of the boom:90 seconds -100 seconds Full retraction time of the boom:110 seconds -120 seconds The full lifting time of the boom:45 seconds -60 seconds The full lowering time of the boom: 70s-90s Engine parameters Engine models: Yuchai YCK08330-61, Weichai WP9H336E62, etc Rated power:243 2200kW/ rpm (Yuchai YCK08330-61),247; 1900kW/ rpm (Weichai WP9H336E62) Driving parameters Maximum driving speed: 85km/h h-90km/ h Minimum turning radius:12 meters Maximum climbing gradient:45%-47% Approach Angle:18°-19° Departure Angle:11°-14° Minimum ground clearance: 250mm-320mm Overall machine specification parameters The overall length of the machine is 13960mm-14420mm Overall width of the machine: 2650mm-2800mm Overall height of the machine: 3700mm-3885mm Outrigger span (transverse × longitudinal):6.05m×7.4m-8.0m×6.24m Weight parameter The total weight of the entire machine:39,000 kg-42,000 kg Maximum counterweight: 6t+2.5t-9.8t
