Broj internog magacina
553
Maksimalni kapacitet dizanja
45000 kg
Maksimalna visina podizanja
2743 cm
Dodatna oprema
https://freecranespecs.com/Link-Belt/HTC-50W
Ostale informacije

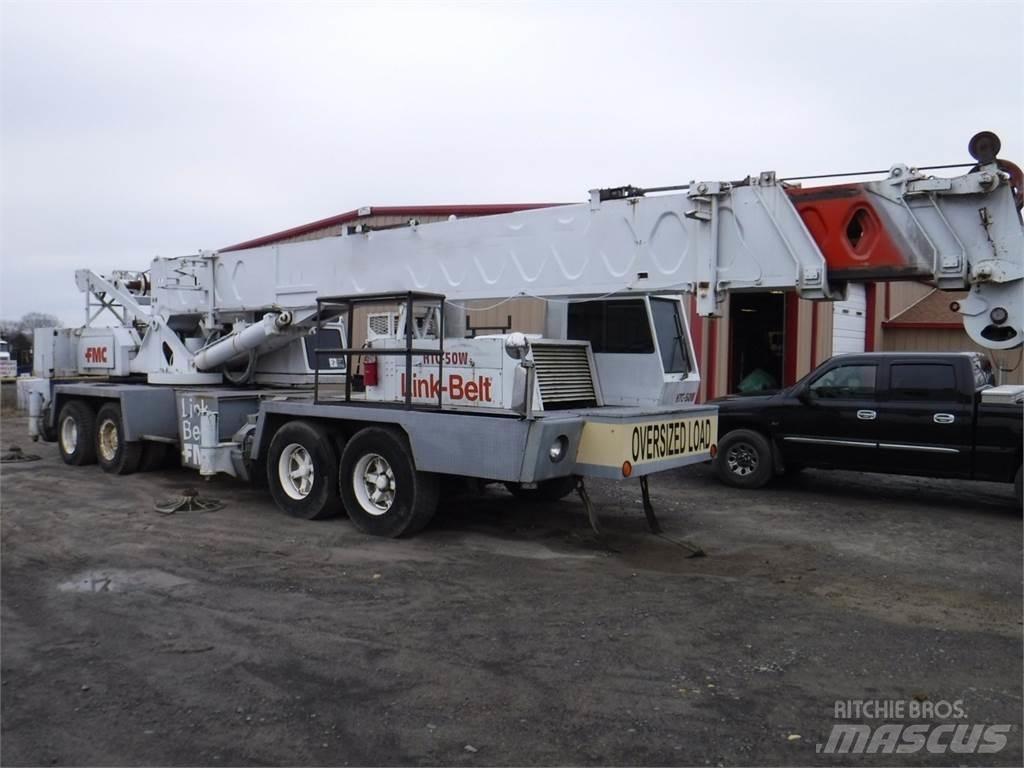

1979 Link-Belt HTC45W, 45 Ton Hydraulic Truck Crane; CranesList ID: 553,
35'- 90' Three Section Full Power Boom
with Auxiliary Lifting Sheave,
No 32’ Swing-Away Lattice Fly b
ut 28' and 20' jib pieces with the mast to make the 80' jib are available
in Texas for an additional cost,
Main and Auxiliary Winches with 3/4" wire rope
True Free Fall lowering On Both Drums, Boom Angle Indicator, Drum Rotation Indicator, Two-speed (Main), Anti Two Block,
Hook Ball,
Hook Block,
6,700# counterweight - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION,
Extendable Hydraulic Counterweight,
Heater and defroster fan UP and Down,
10' 3" Wide Link-Belt 8 x 4 Drive with rear tandem steering Carrier,
GM 6-71 238 H.P. Diesel Engine
- AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION,
Jake Brake,
Fuller Roadranger RTO-613 Transmission, 13 forward, 3 reverse speeds,
Front Tires:
16.50 x 22.5 (16 Ply) - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION,
Rear Tires:
12:00 x 20.0 (16 Ply) - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION,
230" wheelbase,
9' 10" retracted and 21' extended Outriggers,
Controls for outriggers and site level bubble are in the operator's cab,
Aluminum outrigger pads,
Tool Boxes,
YEAR & SERIAL NUMBER TO BE CONFIRMED.
