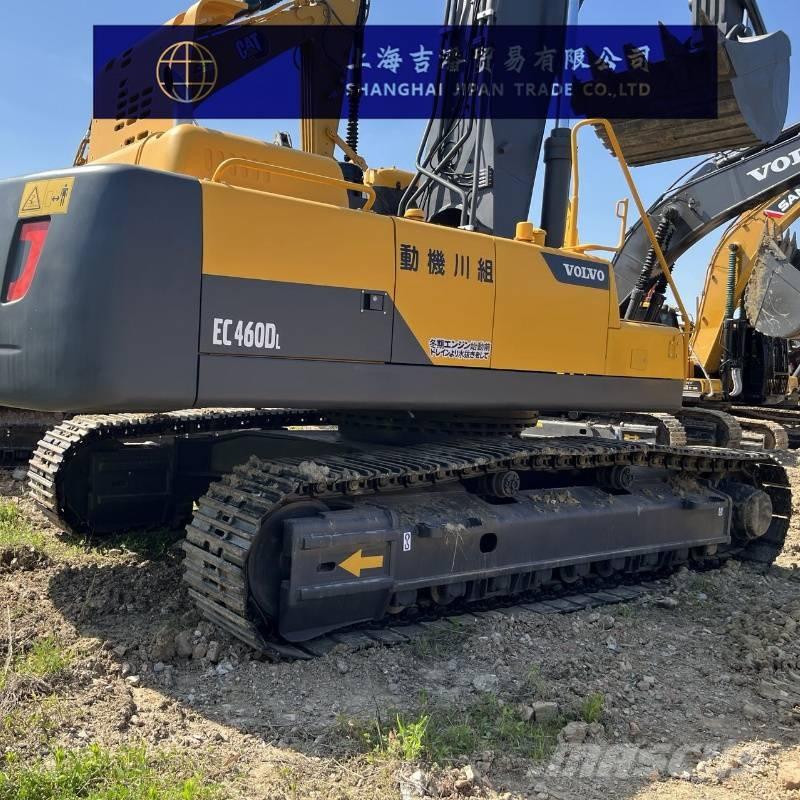

Volvo EC 460

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters Operating Weight: 44,500 kg Bucket Capacity: 1.8–3.73 m³ Boom Length: 7,000 mm Stick Length: 3,350 mm Performance Parameters Swing Speed: 8.5 rpm Travel Speed: 2.9/4.8 Km/h Gradeability: 70% Ground Pressure: 77.5 Kpa Bucket Digging Force: 253.0 kN (standard) / 276.5 kN (boost) Stick Digging Force: 195.1 kN (standard) / 213.8 kN (boost) Engine Parameters Engine Model: Volvo D12D Rated Power: 245 kW / 1,800 rpm Displacement: 12.1 L Number of Cylinders: 6 Bore × Stroke: 131 × 150 mm Cooling System: Water-cooled Hydraulic System Parameters Main Pump Type: Variable displacement axial piston pump × 2 + Gear pump Max Flow of Main Pump: 345 × 2 + 31 L/min Working Hydraulic Circuit Pressure: 31.4/34.3 Mpa Travel Hydraulic Circuit Pressure: 31.4 Mpa Swing Hydraulic Circuit Pressure: 24.5 Mpa Control Hydraulic Circuit Pressure: 3.9 Mpa Boom Cylinder: 2–165 × 1,590 mm Stick Cylinder: 1–190 × 1,850 mm Bucket Cylinder: 1–165 × 1,335 mm Fluid Capacity Parameters Fuel Tank: 685 L Hydraulic Oil Tank: 270 L Hydraulic System: 525 L Engine Oil Change Capacity: 42 L Coolant: 60 L Dimensions Parameters Overall Transport Length: 12,070 mm Overall Transport Width: 3,340 mm Overall Transport Height: 3,650 mm Cab Height: 3,250 mm Counterweight Ground Clearance: 1,275 mm Track Contact Length: 4,370 mm Total Track Length: 5,370 mm Track Shoe Width: 600 mm Total Track Width: 3,340 mm Track Gauge: 2,740 mm Minimum Ground Clearance: 550 mm Minimum Swing Radius of Front Attachment: 5,090 mm Rear Swing Radius: 3,730 mm Working Range Parameters Max Digging Radius: 12,000 mm Max Digging Radius at Ground Level: 11,780 mm Max Digging Depth: 7,700 mm Max Digging Height: 10,970 mm Max Dumping Height: 7,650 mm Max Vertical Digging Depth: 6,840 mm Max Digging Depth at 2.5m Horizontal Reach: 7,550 mm
