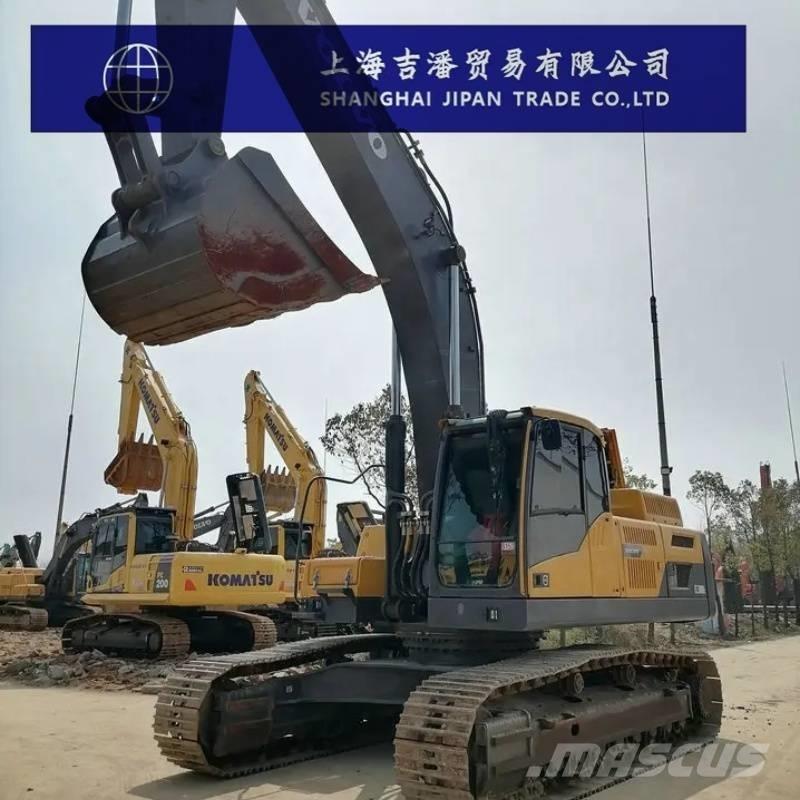

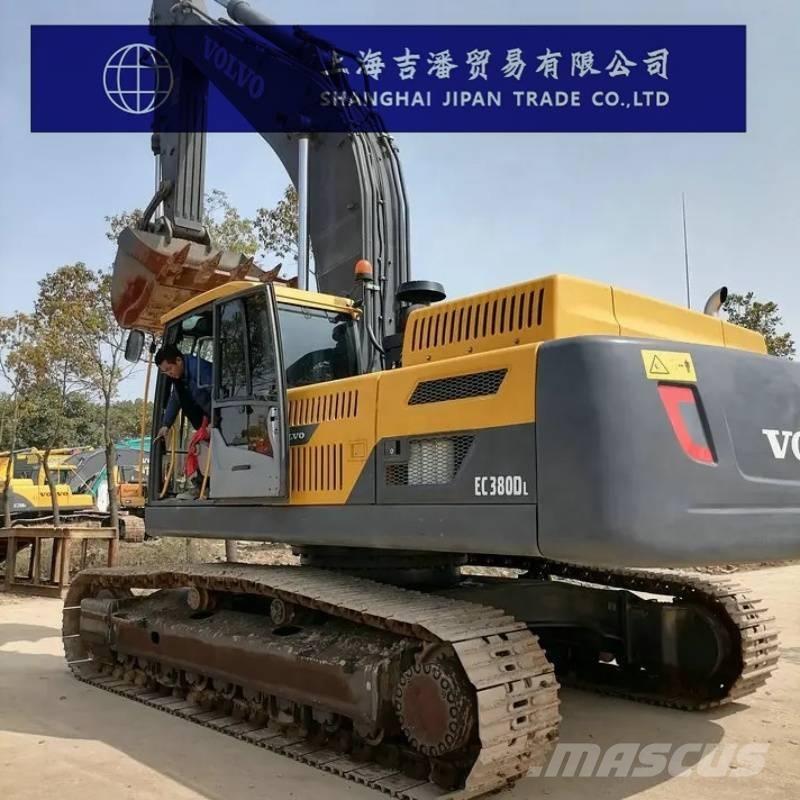

Volvo EC 380 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Volvo EC380DL Excavator Parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 38 The working weight of the whole machine (kg) is 37800-41100 Bucket capacity (m³) 1.35-3 Boom length (mm) 6450 Stick length (mm) 2600 Country of origin: South Korea performance Rotation speed (rpm) 10.3 Travel speed (km/h) 3.4/5.3 Climbing ability (%) 35° Grounding specific pressure (Kpa) 68.1 (with 600mm track shoes) Bucket digging force (kN) 221.7 (standard) / 242.7 (afterburner) Bucket digging force (kN) 144.4 (standard) / 157.4 (afterburner) dynamical system Engine model Volvo D13H-D Rated power (kw/rpm) 215/1700 Displacement (L) 12.8 Number of cylinders (pcs) 6 Bore × stroke (mm) 131×158 Cooling method: Water cooling The working form is air-cooled and meets US Tier4i and EU IIIB emission standards Hydraulic system Main Pump Type Variable Axial Piston Pump × 2 Pilot Gear Pump Traveling Hydraulic Motor Type Variable Axial Plunger Motor with Mechanical Brake Slewing Hydraulic Motor Type Fixed Displacement Axial Piston Motor with Mechanical Brake The maximum flow rate (l/min) of the main pump is 300×2 25.5 Pilot oil circuit (MPa) 3.9 Working Hydraulic Oil Circuit (Mpa) 32.4/35.3 Travel Hydraulic Circuit (Mpa) 35.3 Slewing hydraulic circuit (Mpa) 27.9 Boom cylinder - number × bore × stroke (mm) 2-160×1530 Stick cylinder - number × bore × stroke (mm) 1-175×1750 Bucket cylinder - number × bore × stroke (mm) 1-145× 1285 Oil capacity Fuel tank (L) 620 Hydraulic Tank (L) 227 Hydraulic System (L) 485 Engine oil change volume (L) 42 Coolant (L) 60 Body size Total length of transport (mm) 11330 Total width of transport (mm) 3340 Total Transport Height (mm) 3590 (Overall Boom Height) Cab total height (mm) 3197 Total track length (mm) 5180 Track shoe width (mm) three-tooth 600/700/800/900; double-tooth 600 Total track width (mm) 3340 Track gauge (mm) 2740 Minimum ground clearance (mm) 500 Counterweight ground clearance (mm) 1210 The minimum turning radius of the front working device (mm) is 4300 Rear end slewing radius (mm) 3560 Scope of work Maximum digging radius (mm) 10550 The maximum excavation radius of the shutdown surface (mm) is 11520 Maximum digging depth (mm) 6850 Maximum digging height (mm) 10170 Maximum unloading height (mm) 7 090 Maximum vertical digging depth (mm) 5350 Maximum effective digging depth (mm) 8000 Boom slewing angle (left/right °) None Width × height of bulldozer plate (mm) None Dozer shovel lifting or pushing depth (mm) None
