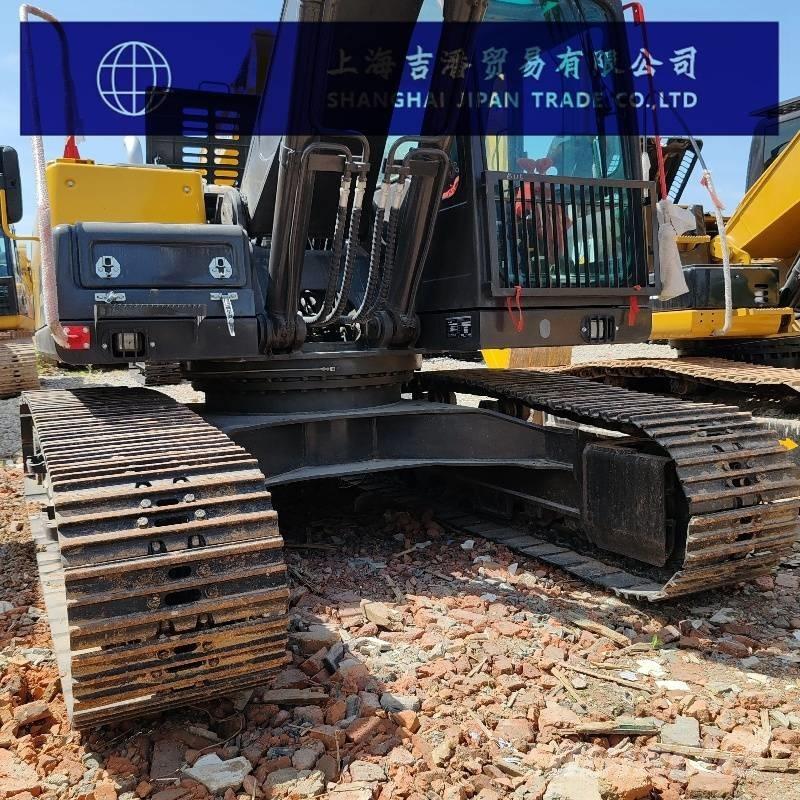

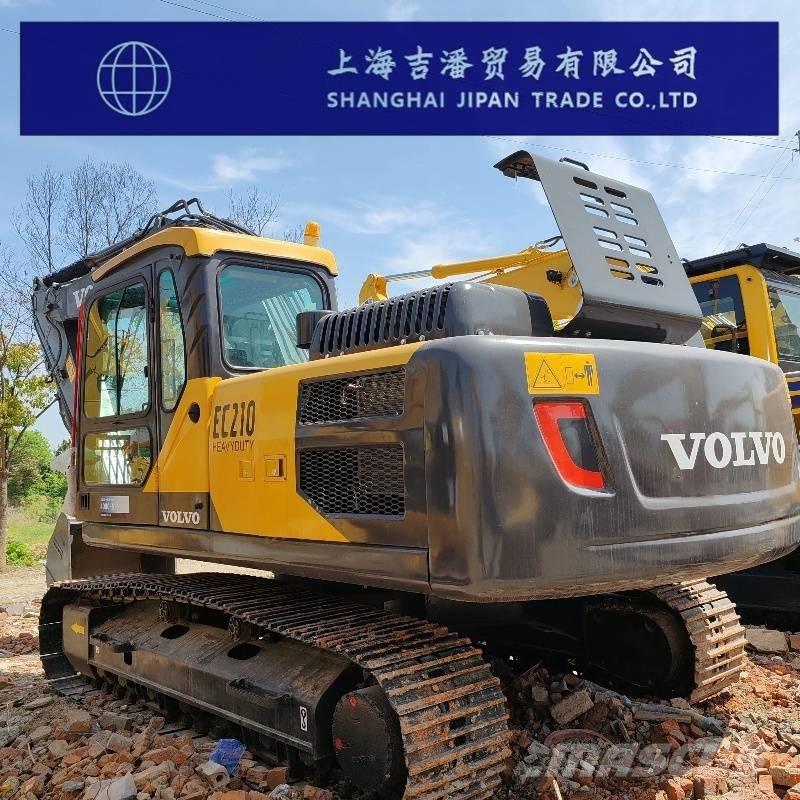

Volvo EC 210

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Specifications Power Type: Conventional power Manufacturer: Joint venture/Imported Bucket Type: Backhoe Tonnage (ton): 21 Operating Weight (kg): 18100 - 22800 Bucket Capacity (m³): 0.52 - 1.22 Boom Length (mm): 5700 Stick Length (mm): 2900 Performance Swing Speed (rpm): 12.3 Swing Torque (Nm): 76.7 Travel Speed (km/h): 3.5 / 5.8 Bucket Digging Force (kN): 123 Stick Digging Force (kN): 96 Maximum Traction Force (kN): 183 Power System Engine Model: Volvo D5E Rated Power (kw/rpm): 123/2000 Maximum Torque (N.m): 670 / 1600 Displacement (L): 4.7 Number of Cylinders: 4 Bore × Stroke (mm): 108*130 Hydraulic System Main Pump Type: Two variable displacement axial piston pumps Pilot Pump Type: Gear pump Maximum Flow of Main Pump (l/min): 2 x 212 Pilot Pump Flow (L/min): 1 x 18 Pilot Oil Circuit (MPa): 3.9 Working Hydraulic Circuit (Mpa): 32.4 / 34.3 Travel Hydraulic Circuit (Mpa): 34.3 Swing Hydraulic Circuit (Mpa): 27.9 Main Relief Setting Pressure (Mpa): 32.4 / 36.3 Boom Cylinder - Quantity × Bore × Stroke (mm): 2*125 x 1235 Stick Cylinder - Quantity × Bore × Stroke (mm): 1*135 x 1540 Bucket Cylinder - Quantity × Bore × Stroke (mm): 1*120 x 1065 Fluid Capacities Fuel Tank (L): 375 Hydraulic Oil Tank (L): 160 Hydraulic System (L): 300 Engine Oil Change Capacity (L): 17 Coolant (L): 15 Dimensions Overall Transport Length (mm): 9745 Overall Transport Width (mm): 2800 Overall Transport Height (mm): 3080 Overall Cab Height (mm): 2930 Upper Structure Width (mm): 2700 Track Ground Contact Length (mm): 3370 Total Track Length (mm): 4160 Track Shoe Width (mm): 600 Track Gauge (mm): 2200 Minimum Ground Clearance (mm): 460 Counterweight Ground Clearance (mm): 1025 Number of Track Rollers (per side): 7 Number of Top Rollers (per side): 2 Number of Track Shoes (per side): 46 Working Range Maximum Digging Radius (mm): 9930 Maximum Digging Radius at Ground Level (mm): 9380 Maximum Digging Depth (mm): 6730 Maximum Digging Height (mm): 9220 Maximum Dumping Height (mm): 6430 Maximum Vertical Digging Depth (mm): 5620
