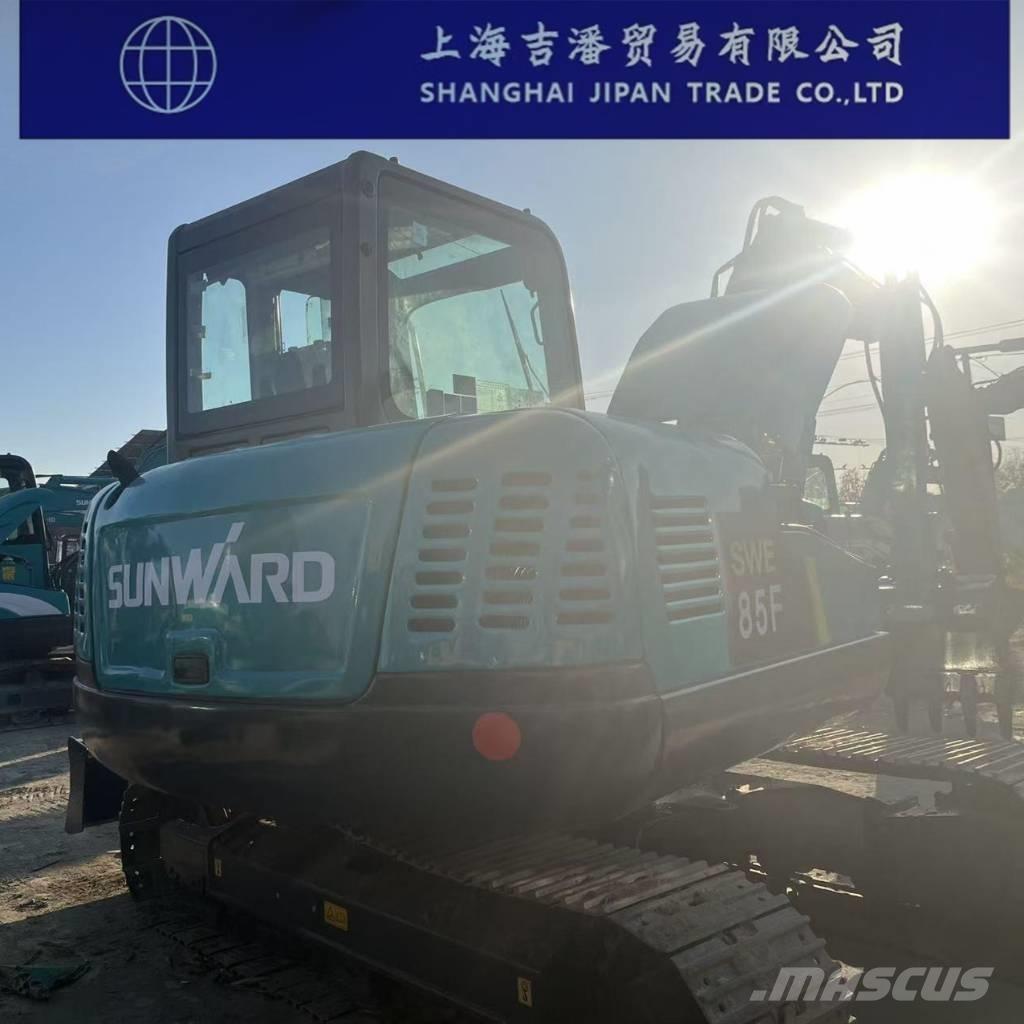

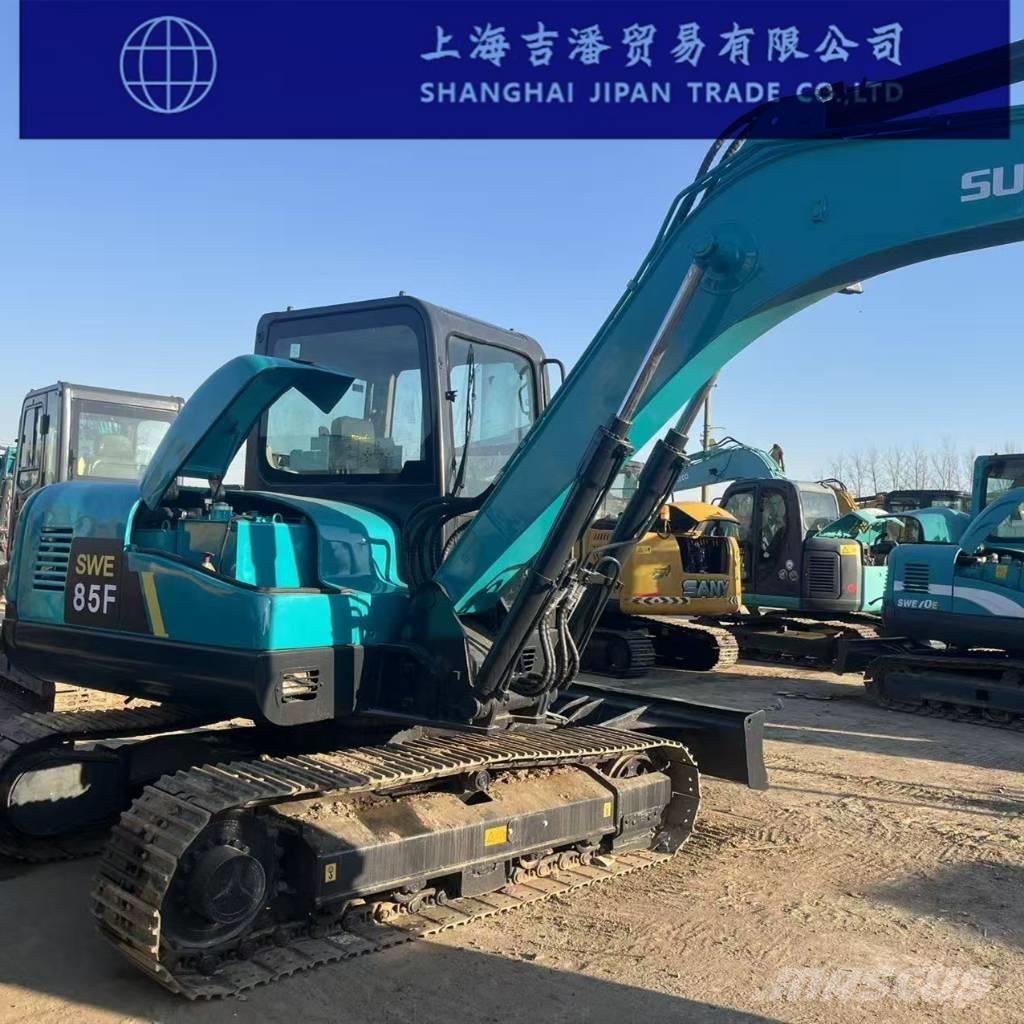

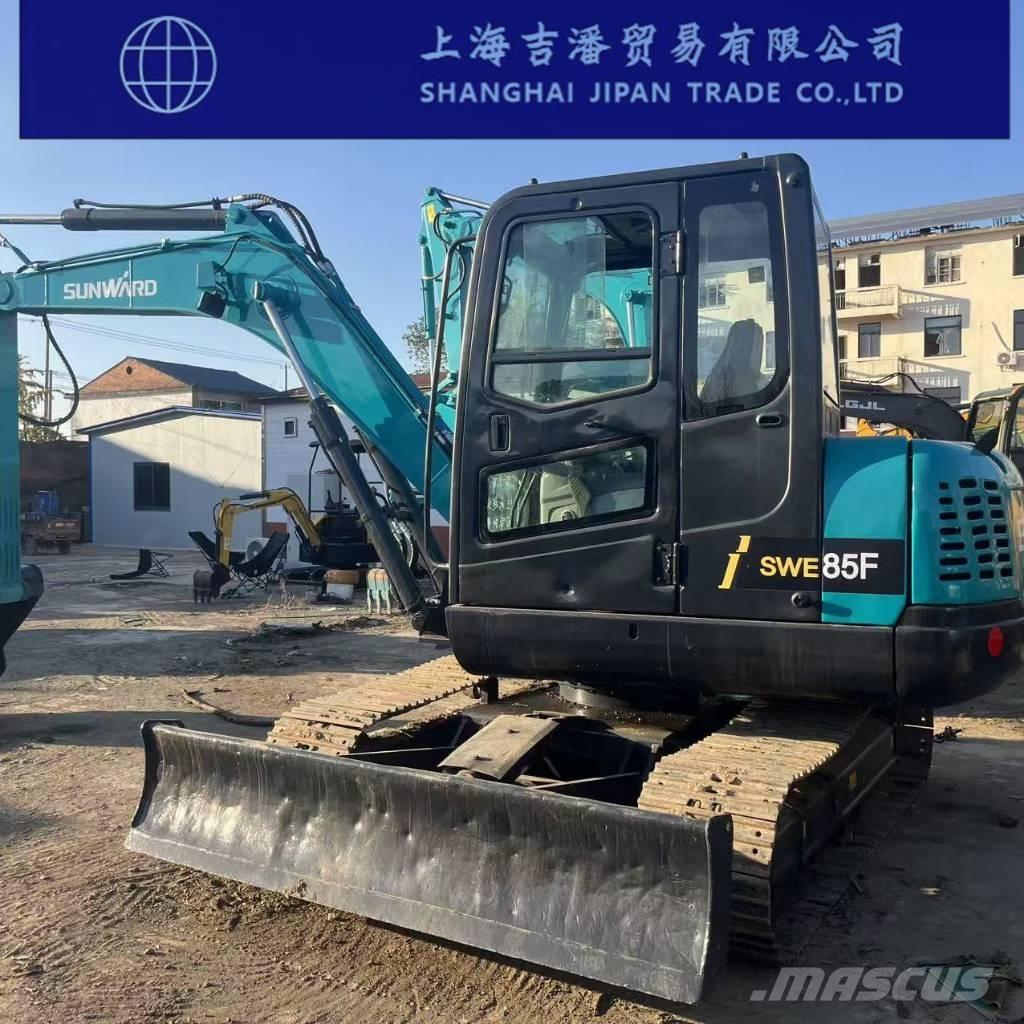

Sunward SWE 85 F

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameters and Configuration of Sunward SWE85F Excavator Specifications Power Type: Conventional Power Manufacturer: Domestic Bucket Type: Backhoe Tonnage (Ton): 8 Overall Operating Weight (kg): 7800～8100 Bucket Capacity (m³): 0.28～0.37 Boom Length (mm): 3720 Arm Length (mm): 1680 Performance Swing Speed (rpm): 10 Travel Speed (km/h): 4.1/2.4 Gradeability (%): 35° Ground Pressure (Kpa): 33.7 Bucket Digging Force (kN): 57 Arm Digging Force (kN): 38 Power System Engine Model: Yanmar 4TNV98C-CSSU Rated Power (kw/rpm): 46.2/2200 Maximum Torque (N.m): 241/1430 Displacement (L): 3.3 Number of Cylinders (Unit): 4 Emission Standard: National IV (China's National Emission Standard IV) Hydraulic System Main Pump Type: Variable Displacement Piston Pump Maximum Flow of Main Pump (l/min): 167 Pilot Pump Flow (L/min): 15 Pilot Oil Circuit (MPa): 3.5 Working Hydraulic Oil Circuit (Mpa): 29 Oil Capacity Fuel Tank (L): 160 Hydraulic Oil Tank (L): 100 Main Dimensions Total Transport Length (mm): 6254 Total Transport Width (mm): 2270 Total Transport Height (mm): 2723 Overall Cab Height (mm): 2723 Track Ground Contact Length (mm): 2270 Total Track Length (mm): 2900 Track Shoe Width (mm): 450 Total Track Width (mm): 2250 Track Gauge (mm): 1800 Minimum Ground Clearance (mm): 400 Counterweight Ground Clearance (mm): 820 Minimum Swing Radius of Front Working Device (mm): 1945 Rear Swing Radius (mm): 1850 Working Range Maximum Digging Radius (mm): 6410 Maximum Digging Radius at Ground Level (mm): 6240 Maximum Digging Depth (mm): 4050 Maximum Digging Height (mm): 7190 Maximum Dumping Height (mm): 5190 Maximum Vertical Digging Depth (mm): 3390 Dozer Lift or Push Depth (mm): 785/400
