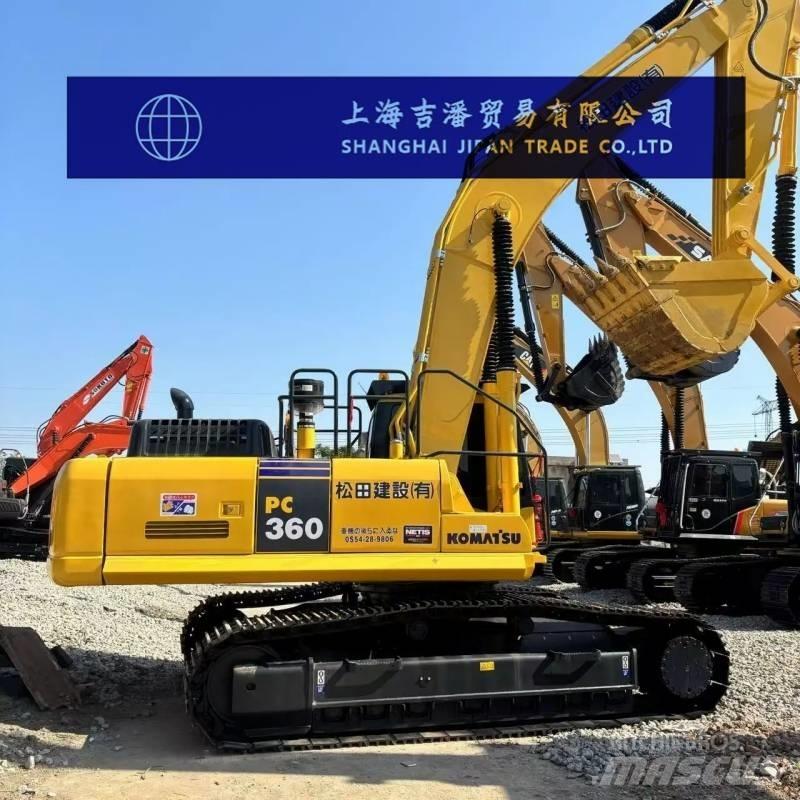

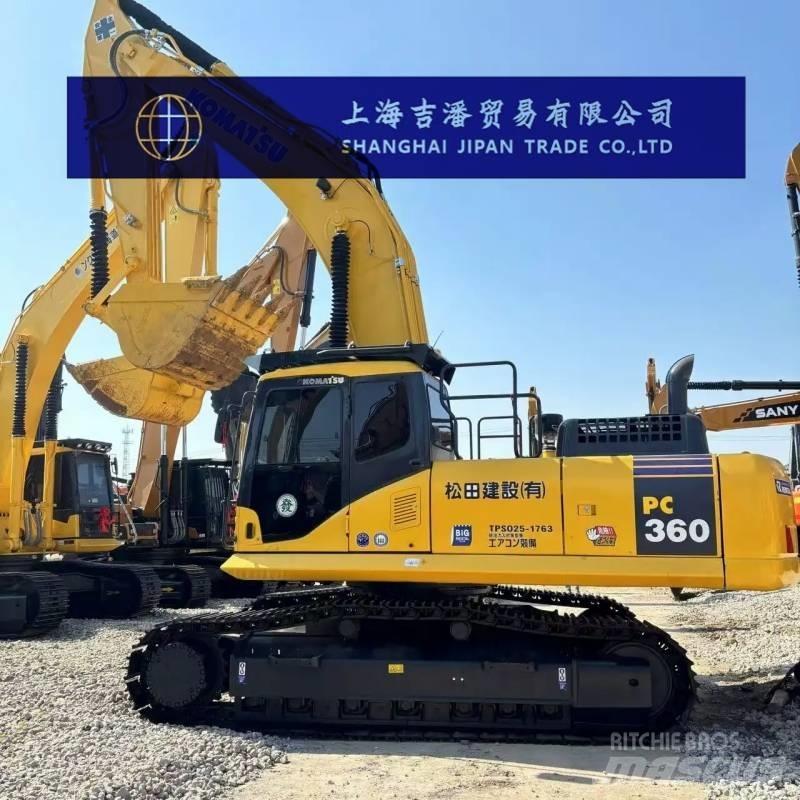

Komatsu PC 360

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Komatsu PC360 excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)36 The overall working weight of the machine (kg) is 33,550 Bucket capacity (m³) : 1.6-1.9 Boom length (mm)6470 The length of the boom (mm) is 3185 Performance Rotational speed (rpm) : 9.5 Walking speed (km/h)5.5/4.5/3.2 Climbing ability (%) : 70 The ground pressure (Kpa) is 68.5 Bucket digging force (kN)232 The digging force of the boom (kN) is 174 Maximum traction force (kN)264 Power system Engine model: Komatsu SAA6D114E-3 Rated power (kw/rpm) : 187/1950 Displacement (L)8.27 Number of cylinders (6 Cylinder diameter × stroke (mm)114×135 The cooling method is water cooling The working form is a six-cylinder four-stroke turbocharged intercooled direct injection engine Hydraulic system The main pump type is a variable piston pump The maximum flow rate of the main pump (l/min) is 535 Pilot oil Circuit (MPa)3.2 Working hydraulic circuit (Mpa)38.2 Walking hydraulic circuit (Mpa)38.2 Rotary hydraulic circuit (Mpa)28 Boom cylinders - number × cylinder diameter × stroke (mm)2-140×1480 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-160×1825 Bucket cylinder - number × cylinder diameter × stroke (mm)1-140×1285 Oil capacity Fuel tank (L)605 Hydraulic oil tank (L)188 Engine oil change volume (L)37 Coolant (L)31 Main body size Total transportation length (mm) : 11150 The total transportation width (mm) is 3190 The total transportation height (mm) is 3145 Track grounding length (mm) : 5755 The total length of the track (mm) is 4625 Track plate width (mm) : 600 The total width of the tracks (mm) is 3190 Track gauge (mm) : 2590 Minimum ground clearance (mm) : 500 The ground clearance of the counterweight (mm) is 1185 The minimum turning radius (mm) of the front working device is 4450 The rear end turning radius (mm) is 3450 Number of supporting wheels (single side) (units)7 Number of idler wheels (single side) (units)2 Number of track plates (single side) (pieces) : 45 Scope of work Maximum excavation radius (mm) : 11080 The maximum excavation radius (mm) of the shutdown face is 10,890 Maximum excavation depth (mm) : 7380 Maximum excavation height (mm) : 9925 Maximum unloading height (mm) : 7040 Maximum vertical excavation depth (mm) : 6040
