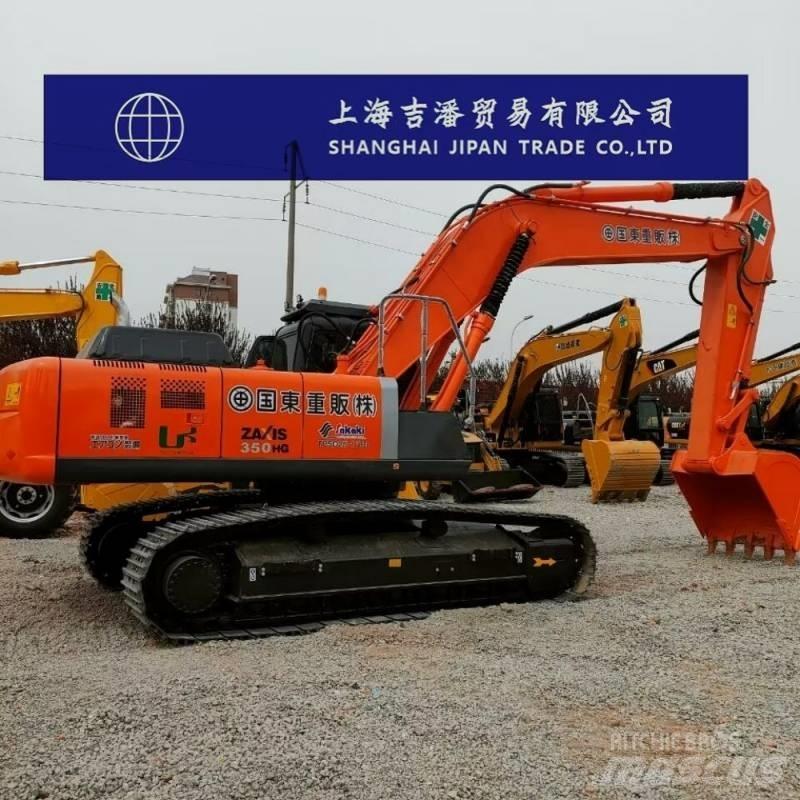

Hitachi ZX 350
Cena bez PDV-a
Štampaj
INFO
Grupa proizvoda
Bageri guseničari
Brend/Model
Hitachi ZX 350
Godište proizvodnje
2023
Sati korišćenja
700 h
Zemalja
Kina
Opšta ocena
1
2
3
4
5
Mascus ID
169EC8DB
CENA
Izaberi valutu:
DETALJI
Broj internog magacina
1
Tip motora
Dizel
Proizvodnja/Serijski broj
1
Broj prethodnih vlasnika
1
Poslednja inspekcija
2025-07-09

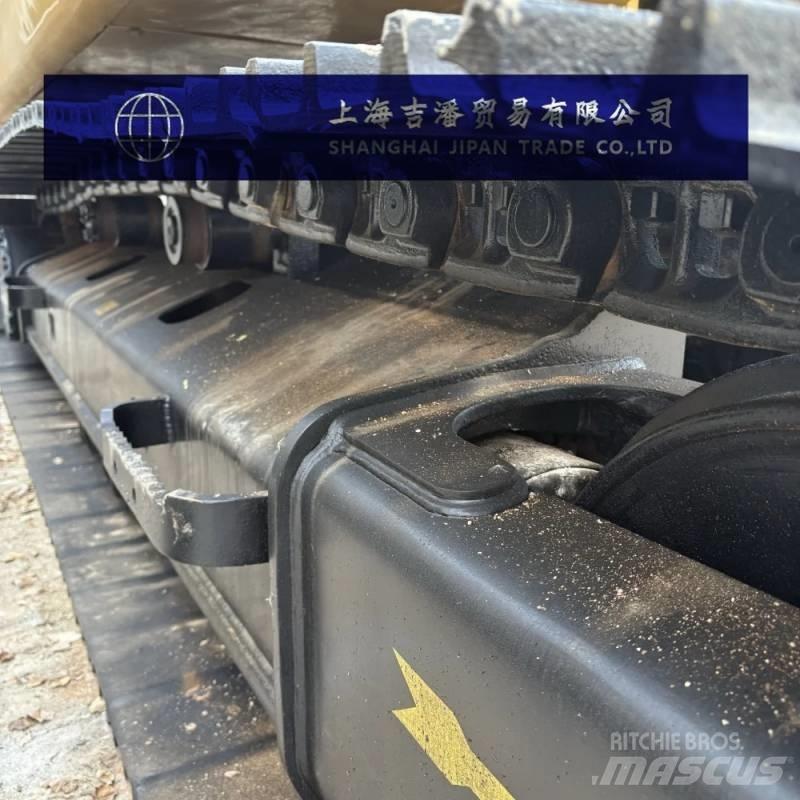

Stanje donjeg stroja
Good Condition
Motor
Original
Bruto težina
33700 kg
Snaga motora
202 kW (275 KS)
Engine manufacturer
Original
Registarki broj
1
Klasa emisije
Stage V
Kapacitet prostora
1.38 m3
Širina trake
600 mm
Pretok pomoćni hidraulici
288 l/min
Najveća brzina
5 km/h
Transportne dimenzije (DxŠxV)
11000 x 3190 x 3270 mm
Originalna boja
Original
Dužina štapa / dipera
3200 mm
Informacije o stanju/Garancija
1 Year
Zemlja proizvodnje
Japan
Uslovi isporuke
FCA, FOB, CIF, EXW
Certifikati
EPA, CE
Dodatna oprema
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Dodatna oprema
instalacija za čekić
ventil za blokiranje
Žičana kutija
Klima uredjaj
Dodatna hidraulika
Predfilter motora
Rešetkasta kašika
diskonektor baterije
rotirajući kljun
grejač dizela
kontrola dzojstika
Standardna kašika za kopanje
Kanalska kašika
Planirna kašika
Trapezna kašika
Ostale informacije
Parameter configuration of Hitachi ZX350 excavator
Specification
The working weight of the entire machine (kg) is 33,700
Bucket capacity (m³)1.38
Boom length (mm) : 6400
The length of the boom (mm) is 3200
Origin: Japan
Tonnage (tons)35
Joint venture/import by manufacturers
Power Traditional Power
Bucket backhoe
Joint venture/import by manufacturers
Power Traditional Power
Performance
Rotational speed (rpm) : 10.7
Walking speed (km/h)3.2/5.0
Climbing ability (%)70/35°
Ground specific pressure (Kpa)68
Bucket digging force (kN)234
The digging force of the boom (kN) is 204
Power system
Engine model: ISUZU AH-6HK1X
Rated power (kw/rpm) : 202/1900
Displacement (L)7.79
Number of cylinders (6
Cylinder diameter × stroke (mm) : 115×125
The cooling method is water cooling
The working mode is direct injection, turbocharging, with intercooler
Hydraulic system
Main pump type variables: Axial piston pump ×2+ gear pump ×1
The maximum flow rate of the main pump (l/min) is 2×288+30.2
The type of walking hydraulic motor is variable axial piston motor ×2
The type of rotary hydraulic motor is axial piston motor ×1
Working hydraulic circuit (Mpa)34.3
Walking hydraulic circuit (Mpa)34.3
Rotary hydraulic circuit (Mpa)32.4
Pilot oil circuit (MPa)3.9
Boom cylinders - Number × cylinder diameter × stroke (mm)146×100
Bucket rod cylinder - number × cylinder diameter × stroke (mm)170×115
Bucket cylinder - number × cylinder diameter × stroke (mm)140×95
Is the hydraulic crushing pipeline standard? No
Oil capacity
Fuel tank (L)630
Hydraulic oil tank (L)180
Engine oil change volume (L)41
Coolant (L)32
Main body size
The total transportation length (mm) is 11,000
The total transportation width (mm) is 3190
The total transportation height (mm) is 3270
The total height of the cab (mm) is 3160
The ground clearance of the counterweight (mm) is 1160
Track grounding length (mm) : 3730
The total length of the tracks (mm) is 4650
Track plate width (mm) : 600
The total width of the tracks (mm) is 3190
Track gauge (mm) : 2590
Minimum ground clearance (mm) : 500
Rear end turning radius (mm)3390
Scope of work
Maximum excavation radius (mm) : 11,100
The maximum excavation radius (mm) of the shutdown face is 10,890
Maximum excavation depth (mm) : 7380
Maximum excavation height (mm) : 10360
Maximum unloading height (mm) : 7240
Maximum effective excavation depth (mm) : 7210
Width × height (mm) of the bulldozer board without a bulldozer shovel
Lifting or deepening with a bulldozer (mm) without a bulldozer
