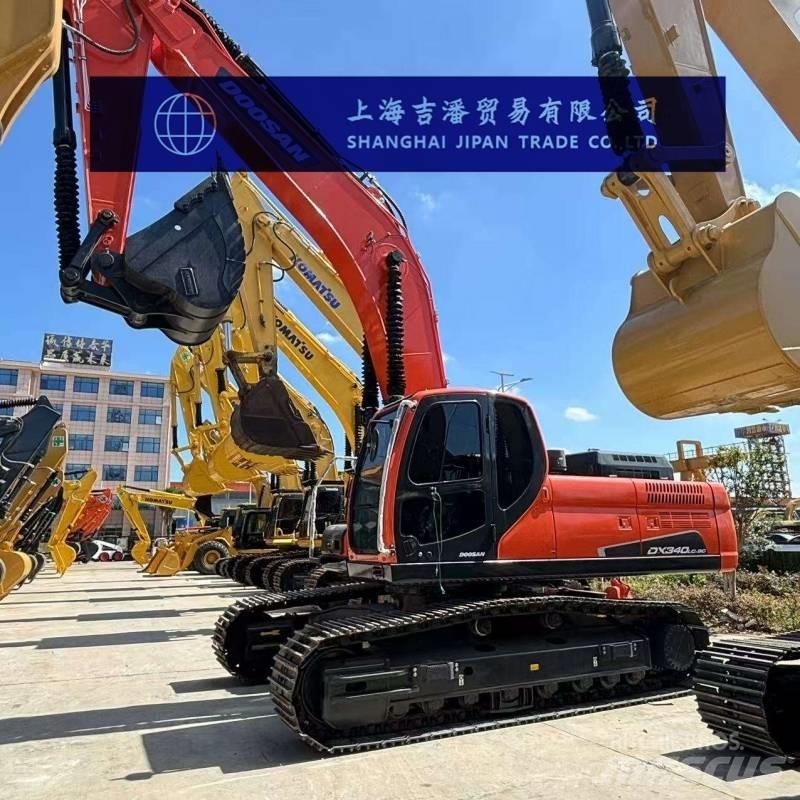

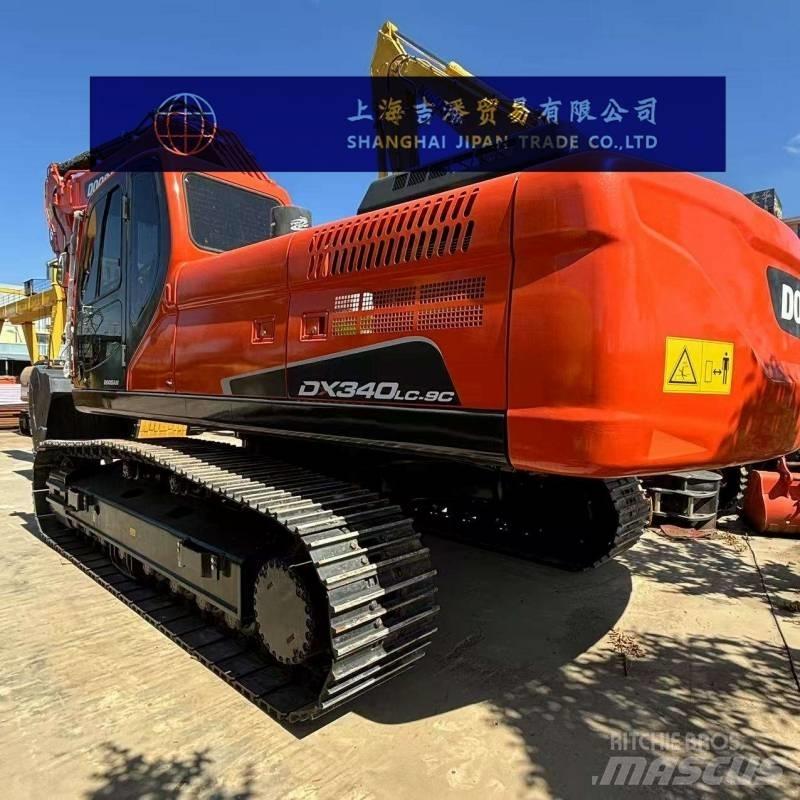

Doosan DX 340
Cena bez PDV-a
Štampaj
INFO
Grupa proizvoda
Bageri guseničari
Brend/Model
Doosan DX 340
Godište proizvodnje
2024
Sati korišćenja
550 h
Zemalja
Kina
Opšta ocena
1
2
3
4
5
Mascus ID
6F4ABCC6
CENA
Izaberi valutu:
DETALJI
Broj internog magacina
1
Tip motora
Dizel
Proizvodnja/Serijski broj
1
Broj prethodnih vlasnika
1
Poslednja inspekcija
2025-07-08
Stanje donjeg stroja
Good Condition
Motor
Original
Bruto težina
34100 kg
Snaga motora
191 kW (260 KS)
Engine manufacturer
Original
Registarki broj
1
Klasa emisije
Stage V
Kapacitet prostora
1.60 m3
Širina trake
600 mm
Pretok pomoćni hidraulici
266 l/min
Najveća brzina
5 km/h
Transportne dimenzije (DxŠxV)
11405 x 3280 x 3590 mm
Originalna boja
Original
Dužina štapa / dipera
2900 mm
Informacije o stanju/Garancija
1 Year
Zemlja proizvodnje
Južna Koreja
Uslovi isporuke
FCA, FOB, CIF, EXW
Certifikati
EPA, CE
Dodatna oprema

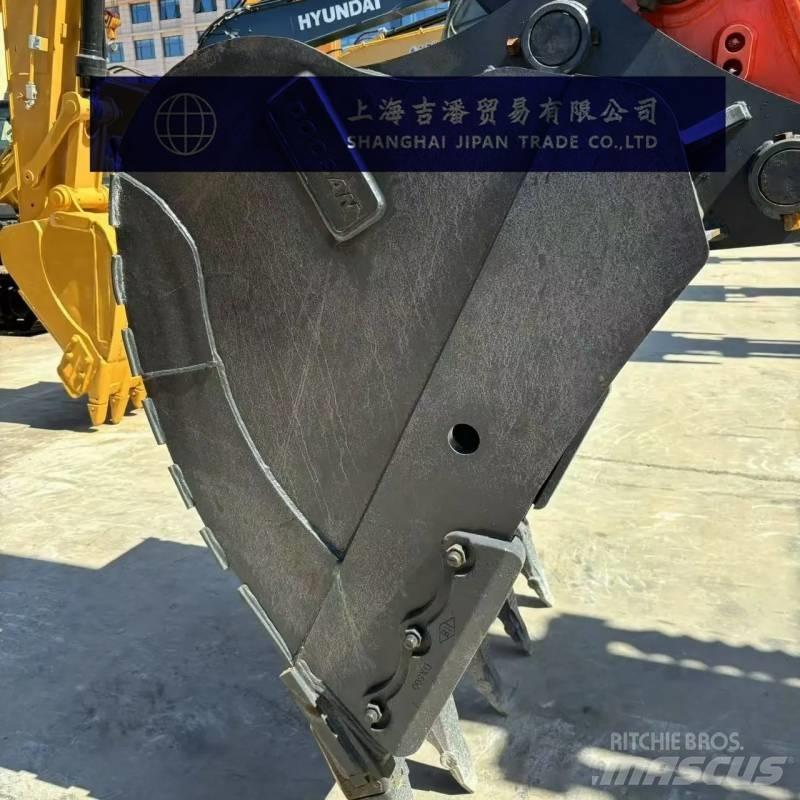

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Dodatna oprema
instalacija za čekić
ventil za blokiranje
Žičana kutija
Klima uredjaj
Dodatna hidraulika
Predfilter motora
Rešetkasta kašika
rotirajući kljun
grejač dizela
kontrola dzojstika
Standardna kašika za kopanje
Kanalska kašika
Planirna kašika
Trapezna kašika
Ostale informacije
Parameter configuration of Doosan DX340LC-9C excavator
Specification
Power Traditional Power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)34
The working weight of the entire machine (kg) is 34,100
Bucket capacity (m³) : 1.4-1.6
Boom length (mm) : 6500
The length of the boom (mm) is 2900
Performance
Rotational speed (rpm)8.6
Rotary torque (Nm) : 13,500
Walking speed (km/h)5.0/3.1
Ground pressure (Kpa) : 66
Bucket digging force (kN)246
Bucket shaft digging force (kN)181
Power system
Engine model: DL08
Rated power (kw/rpm)191/1800
Number of cylinders (6
Cylinder diameter × stroke (mm)108×139
Hydraulic system
The maximum flow rate of the main pump (l/min) is 2×266
Boom cylinders - Number × cylinder diameter × stroke (mm)2-150×100×1430
Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-170×120× 185
Bucket cylinder - number × cylinder diameter × stroke (mm)1-145×95×1300
Oil capacity
Fuel tank (L)324
Main body size
Total transportation length (mm) 11,405
The total transportation width (mm) is 3280
The total transportation height (mm) is 3590
The total height of the cab (mm) is 3125
The width of the vehicle (mm) is 2990
The total length of the track (mm) is 4640
Track plate width (mm) : 600
Minimum ground clearance (mm)510
The ground clearance of the counterweight (mm) is 1195
Rear end turning radius (mm)3530
Scope of work
Maximum excavation radius (mm) : 11,320
The maximum excavation radius of the shutdown face (mm) is 10690
Maximum excavation depth (mm) : 7060
Maximum excavation height (mm) : 10345
Maximum unloading height (mm) : 11168
Maximum vertical excavation depth (mm) : 3970
