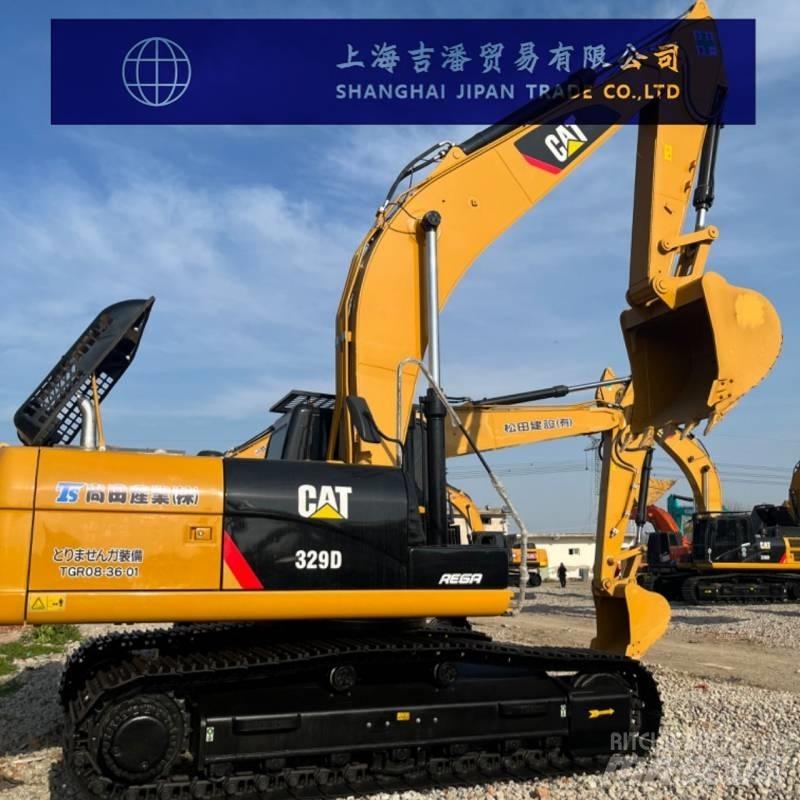

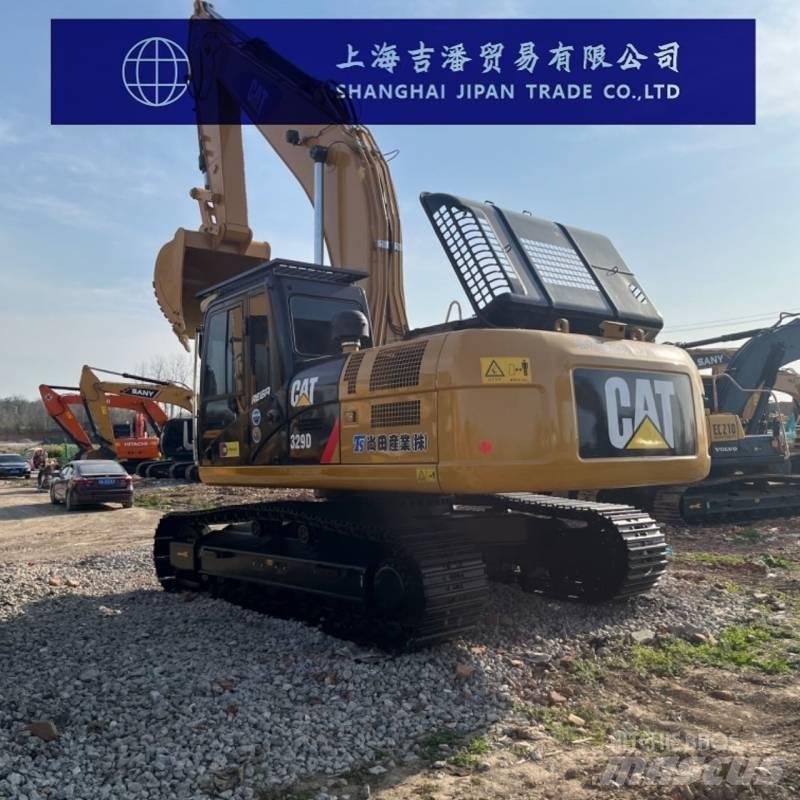

CAT 329 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification The working weight of the entire machine (kg) is 29,240 Bucket capacity (m³)1.1 Boom length (mm) : 6150 The length of the boom (mm) is 3200 Origin: Japan Tonnage (tons)29 Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Rotational speed (rpm) : 10.2 Walking speed (km/h) : 3.5/5.3 Climbing ability (%)70/35° Power system Engine model: C7ACERT Rated power (kw/rpm)152/2000 Displacement (L)7.2 Number of cylinders (6 Cylinder diameter × stroke (mm)110×127 The cooling method is water cooling Hydraulic system The main overflow set pressure (Mpa) is 3.5 The maximum flow rate of the main pump (l/min) is 235 Working hydraulic circuit (Mpa)3.5 Walking hydraulic circuit (Mpa)3.5 Rotary hydraulic circuit (Mpa)2.75 Pilot oil circuit (MPa)3.9 Boom cylinders - Number × cylinder diameter × stroke (mm)140×1407 Bucket rod cylinder - number × cylinder diameter × stroke (mm)150×1646 Bucket cylinder - Number × cylinder diameter × stroke (mm)135×1156 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)520 Hydraulic oil tank (L)145 Hydraulic System (L)310(including the oil tank) Engine oil change volume (L) : 30 Coolant (L)30 Main body size Total transportation length (mm) : 10410 The total transportation width (mm) is 2990 The total transportation height (mm) is 3180 The total height of the cab (mm) is 3040 The ground clearance of counterweights (mm) is 1110 The grounding length of the track (mm) is 3490 The total length of the tracks (mm) is 4360 Track plate width (mm) : 600 The total width of the tracks (mm) is 2990 Track gauge (mm) : 2390 Minimum ground clearance (mm) : 490 Rear end turning radius (mm) : 3080 Scope of work The maximum excavation radius (mm) of the shutdown face is 10,600 Maximum excavation depth (mm) : 7170 Maximum excavation height (mm) : 9990 Maximum unloading height (mm) : 7020 Maximum vertical excavation depth (mm) : 6510 Maximum effective excavation depth (mm) : 7010 Width × height (mm) of the bulldozer board without a bulldozer shovel Lifting or deepening with a bulldozer (mm) without a bulldozer
