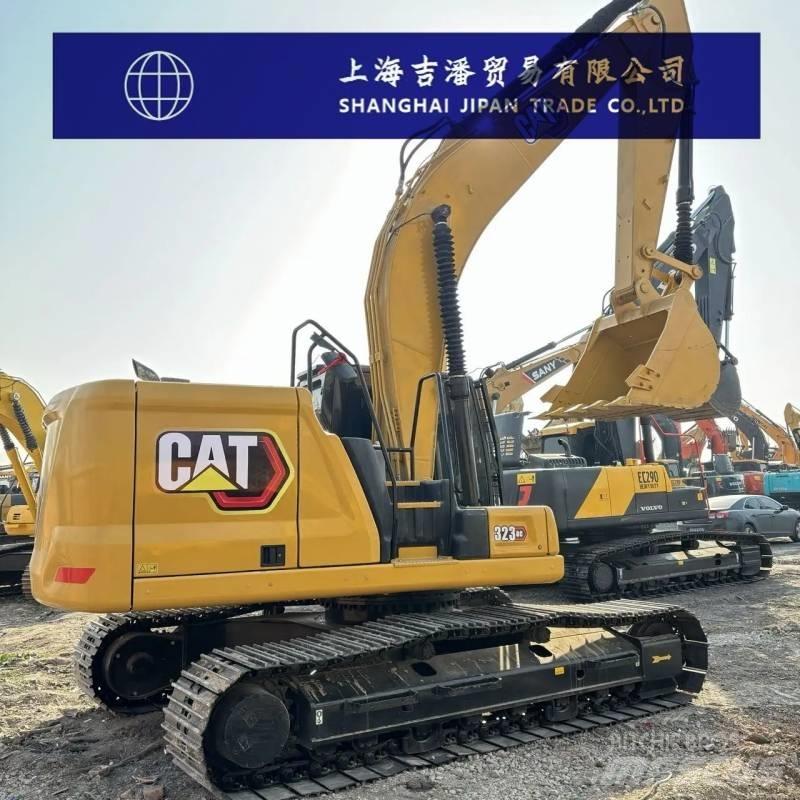

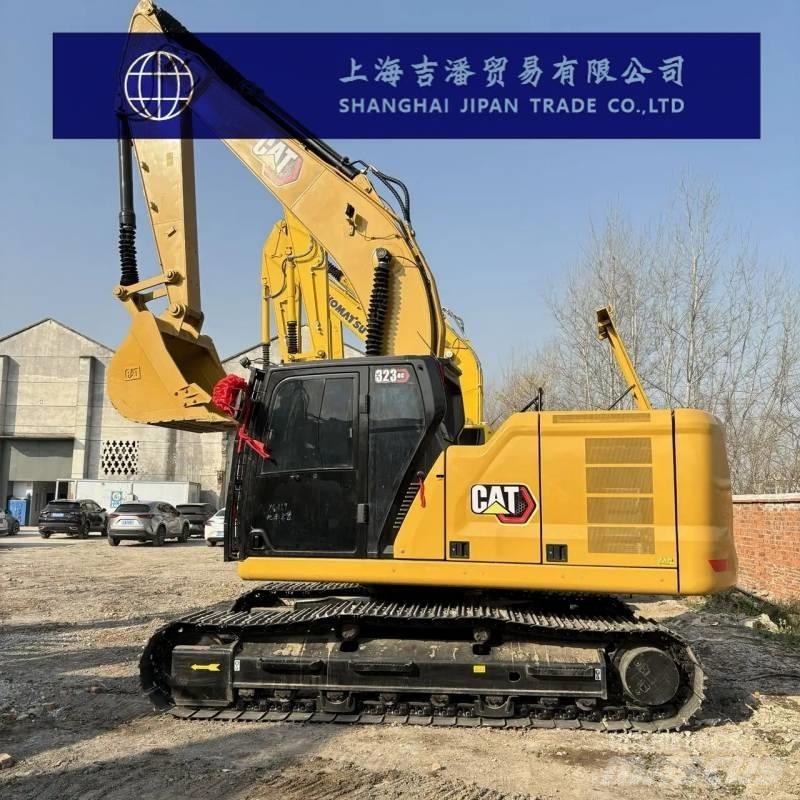

CAT 323 GC
Cena bez PDV-a
Štampaj
INFO
Grupa proizvoda
Bageri guseničari
Brend/Model
CAT 323 GC
Godište proizvodnje
2023
Sati korišćenja
600 h
Zemalja
Kina
Opšta ocena
1
2
3
4
5
Mascus ID
F4B5E9EA
CENA
Izaberi valutu:
DETALJI
Broj internog magacina
1
Tip motora
Dizel
Proizvodnja/Serijski broj
1
Broj prethodnih vlasnika
1
Poslednja inspekcija
2025-06-30

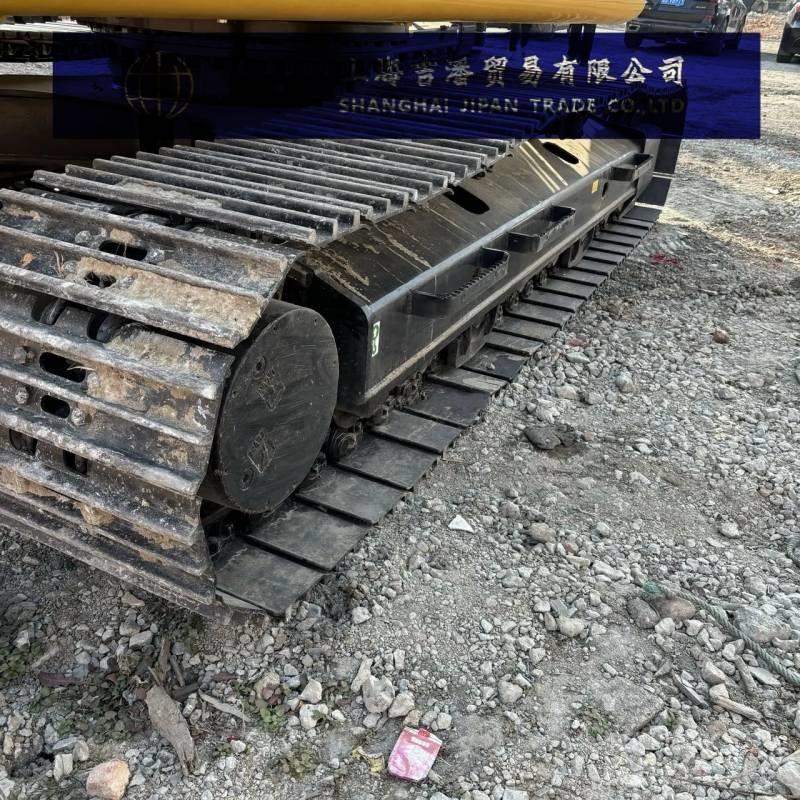

Stanje donjeg stroja
Good Condition
Motor
Original
Bruto težina
22500 kg
Snaga motora
129 kW (176 KS)
Engine manufacturer
Original
Registarki broj
1
Klasa emisije
Stage V
Kapacitet prostora
1.30 m3
Širina trake
600 mm
Pretok pomoćni hidraulici
429 l/min
Najveća brzina
5.70 km/h
Transportne dimenzije (DxŠxV)
9530 x 3650 x 2960 mm
Originalna boja
Original
Dužina štapa / dipera
2900 mm
Informacije o stanju/Garancija
1 Year
Zemlja proizvodnje
Sjedinjene Američke Države
Uslovi isporuke
FCA, FOB, CIF, EXW
Certifikati
EPA, CE
Dodatna oprema
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Dodatna oprema
instalacija za čekić
ventil za blokiranje
Žičana kutija
Klima uredjaj
Dodatna hidraulika
Predfilter motora
Rešetkasta kašika
rotirajući kljun
grejač dizela
kontrola dzojstika
Standardna kašika za kopanje
Kanalska kašika
Planirna kašika
Ostale informacije
Parameter configuration of Caterpillar's new generation CAT®323 GC hydraulic excavator
Specification
Power fuel
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)23
The working weight of the entire machine (kg) is 22,500
Bucket capacity (m³) : 1.3
Boom length (mm) : 5700
The length of the boom (mm) is 2900
Performance
Rotational speed (rpm) : 11.25
The rotary torque (Nm) is 82k
Walking speed (km/h)5.7
Bucket digging force (kN) : 140
Bucket shaft digging force (kN)107
Maximum traction force (kN)205
Power system
Engine model: Cat® C4.4
Rated power (kw/rpm) : 129.4/2000
Displacement (L) : 4.4
Cylinder diameter × stroke (mm) : 105*127
Emission standard: National IV
Hydraulic system
The maximum flow rate of the main pump (l/min) is 429
Working hydraulic circuit (Mpa)35
Walking hydraulic circuit (Mpa)34.3
Rotary hydraulic circuit (Mpa)26.8
Oil capacity
Fuel tank (L)345
Hydraulic oil tank (L)115
Hydraulic System (L)234
Engine oil change volume (L)15
Coolant (L)25
Main body size
The total transportation length (mm) is 9530
The total transportation width (mm) is 3650
The total transportation height (mm) is 2960
The total length of the track (mm) is 4450
Track plate width (mm) : 2980
Track gauge (mm) : 2380
The ground clearance of the counterweight (mm) is 1050
Minimum ground clearance (mm) : 470
Rear end turning radius (mm)2830
Scope of work
Maximum excavation radius (mm) : 9870
Maximum excavation depth (mm) : 6730
Maximum excavation height (mm) : 9450
Maximum unloading height (mm) : 6490
Maximum vertical excavation depth (mm) : 5610
