Broj internog magacina
858
Maksimalni kapacitet dizanja
150000 kg
Maksimalna visina podizanja
6005 cm
Dodatna oprema
https://freecranespecs.com/Grove/RT9150E
Ostale informacije

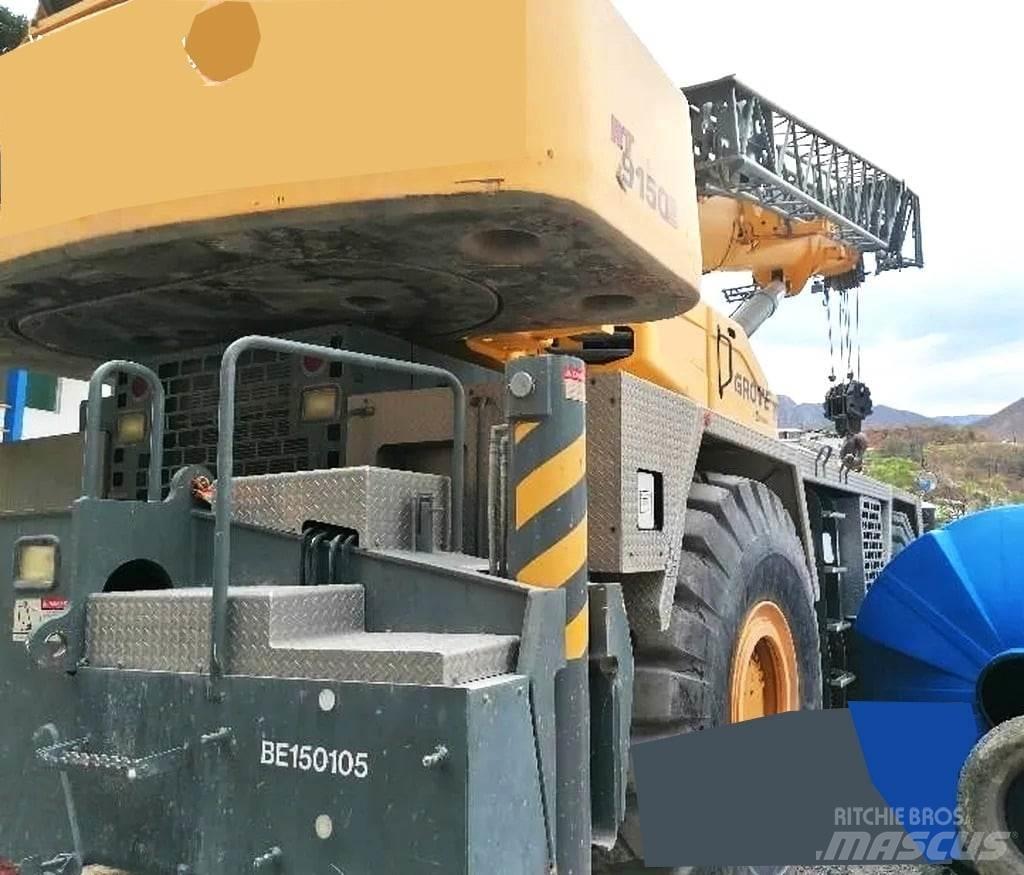

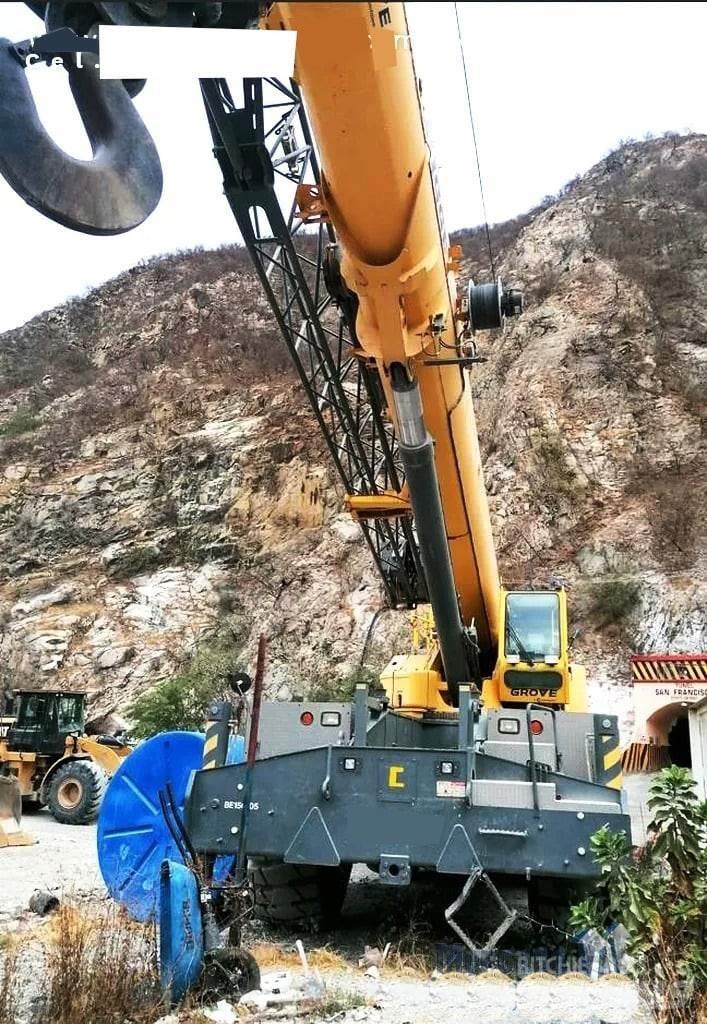

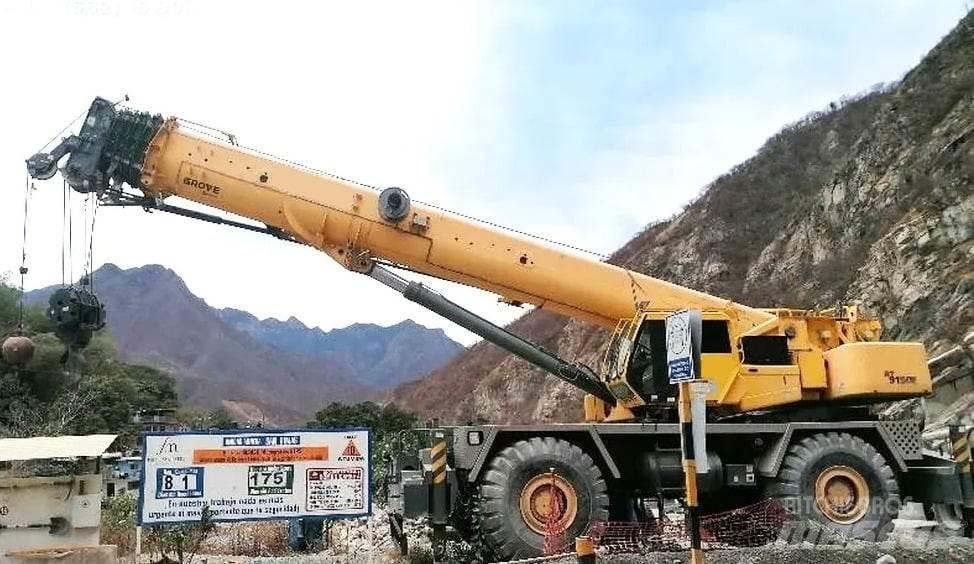

2011 Grove RT9150E, 150 Ton, Rough Terrain Crane; CranesList ID: 858,
42.3' - 197' Six Section, MEGAFORM style full power boom with TWIN-LOCK boom pinning system with Removable auxiliary quick reeve boom nose,
36' - 59' hydraulically offsettable bifold lattice swingaway extension (Jib). Offsets from 0° to 40°. Stows alongside base boom section,
Main and Auxiliary winches with 3/4” wire rope,
Drum Rotation Indicator, Two-Speed, Load moment and anti-two block system - Standard “Graphic Display” with audio-visual warning and control lever lockout. These systems provide electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition.
Hook Ball and Hook Block,
Swing - Two speed, (2) planetary swing drives with foot applied multi-disc wet brakes. Spring applied, hydraulically released swing brakes. 360° positive swing lock and two-position mechanical house lock, both operated from cab,
Grove 4 x 4 drive Carrier,
Cummins QSB 8.3L Six cylinders 224 kW (300 hp) Tier III Diesel Engine,
Full powershift with 6 forward and 3 reverse speeds. Front axle disconnect for 4 x 2 travel.,
Front and Rear Tires: 33.25 x 29 - 38 bias ply,
Air Conditioning,
39,000# counterweights. Hydraulically installed and removed,
Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position settings, 0%, 50% and fully extended. Outrigger boxes removable for ease of transportation,
Outrigger Controls and crane level indicator located in cab,
Fully imported into Mexico.
... IN MEXICO!
